Compatible TV Models: 44NHM84.

Assembly part numbers: TBL4-LMP, 72782309.

NORMAL DISCLAIMER:
— Do NOT purchase generic brand lamps such as LTI, APO or third-party manufacturers such as OSRAM. These lamps were NOT engineered with and for your TV…only your Philips lamp has been engineered to work flawlessly and output the best possible color. Above that, it just doesn’t make sense to choose an aftermarket lamp for a $5-$10 difference (and in many cases they are more expensive!!).

Be a smart consumer and shop around, do your research! Discount-Merchant.com promises to be the low price leader in all Projection Lamps they carry…if this is not true, let us know and we’ll fix it!

Tools Required: 1 Philips screwdriver, 1 Pair of Pliers, & A new lamp.

Time Required: About 15 minutes.

Abstract: This guide is being published to show how easy it is to replace your original Toshiba TBL4LMP Lamp.

NOTE: We recommend you use latex gloves when handling the new bul. to avoid any dirt or oil. Our hands are naturally oily…The oil residue from our hands can cause premature failure of the lamp if the front side of the lamp is not wiped down after the installation. It doesn’t hurt to do a final wipe with a clean, non-abrasive, lint-free cloth before reinstalling your lamp…

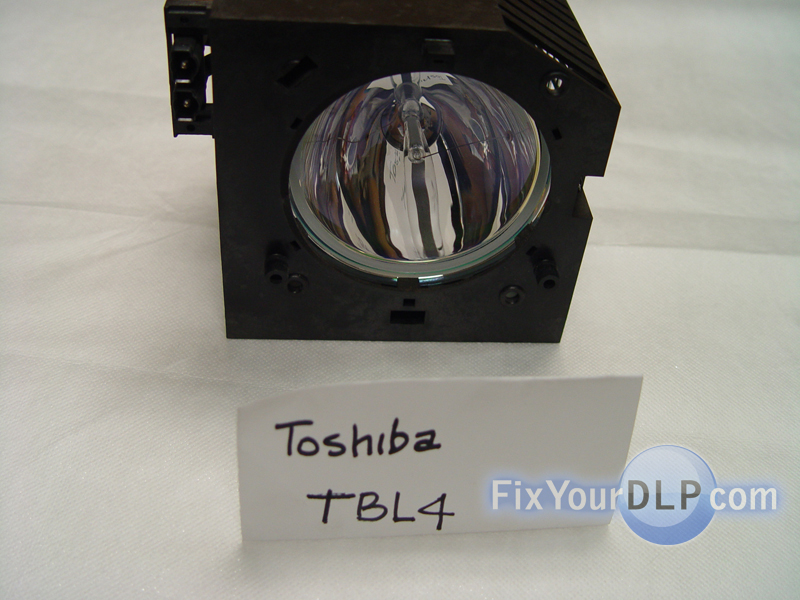

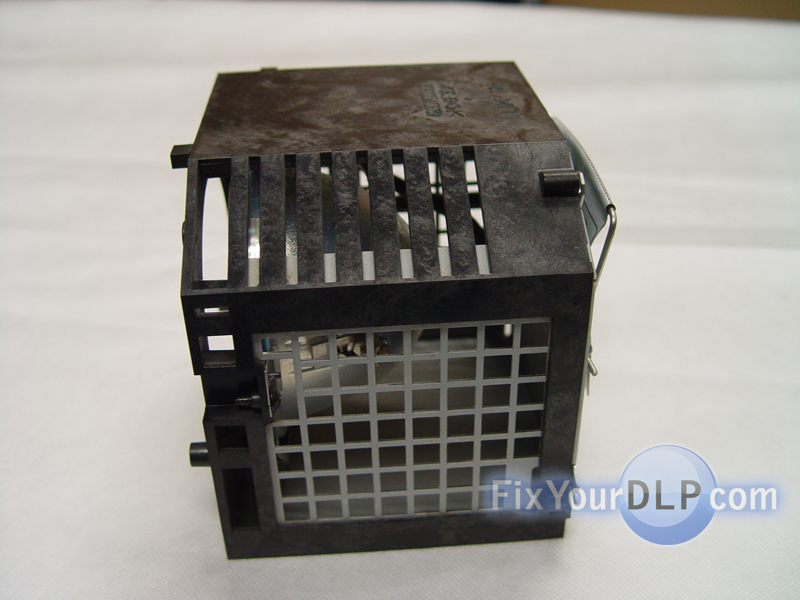

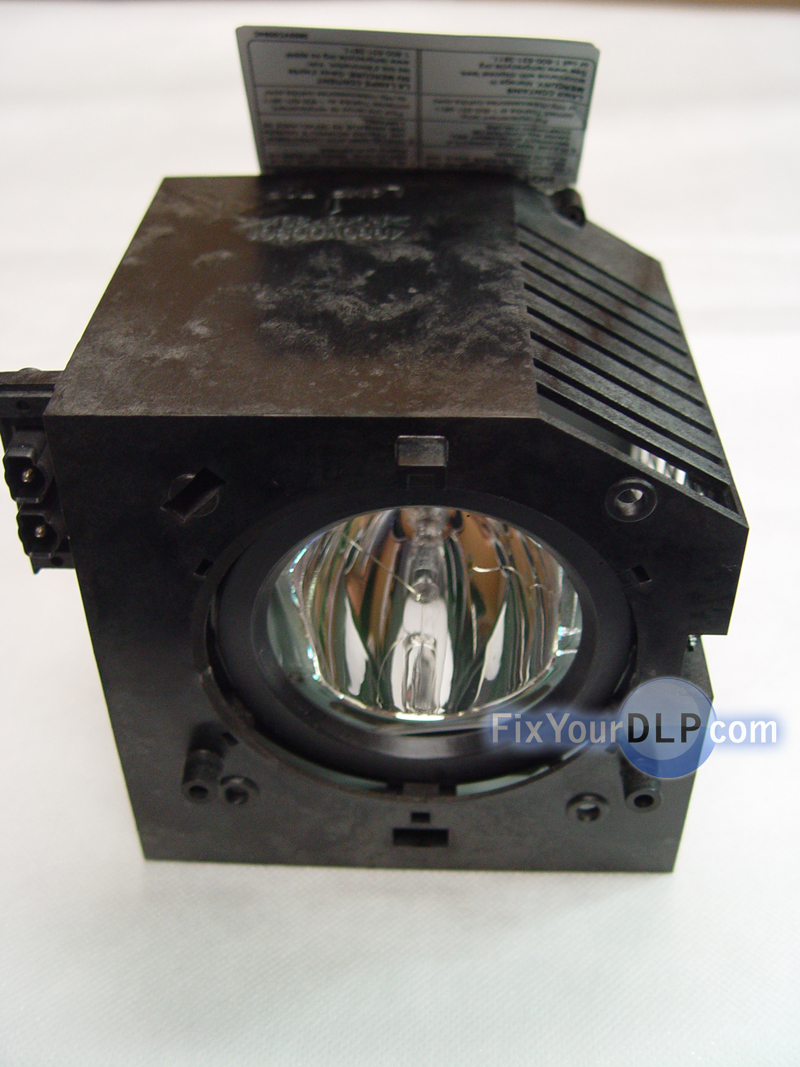

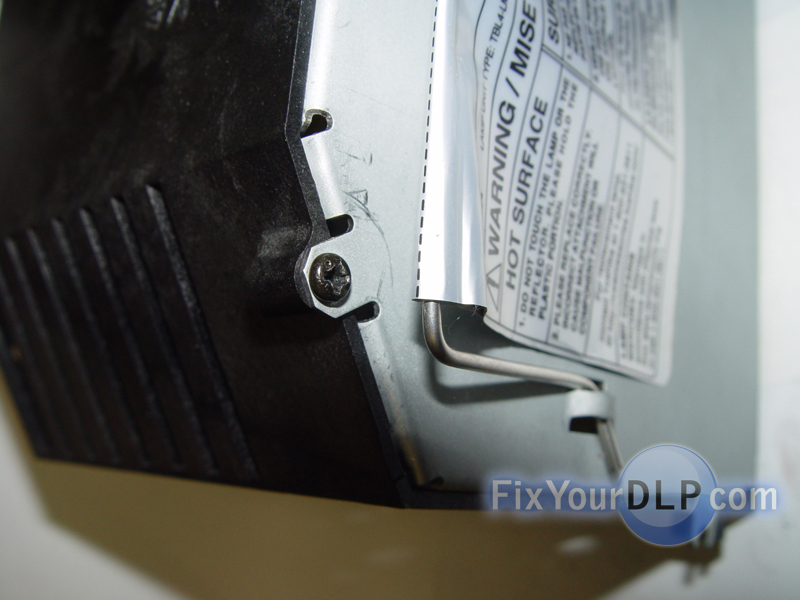

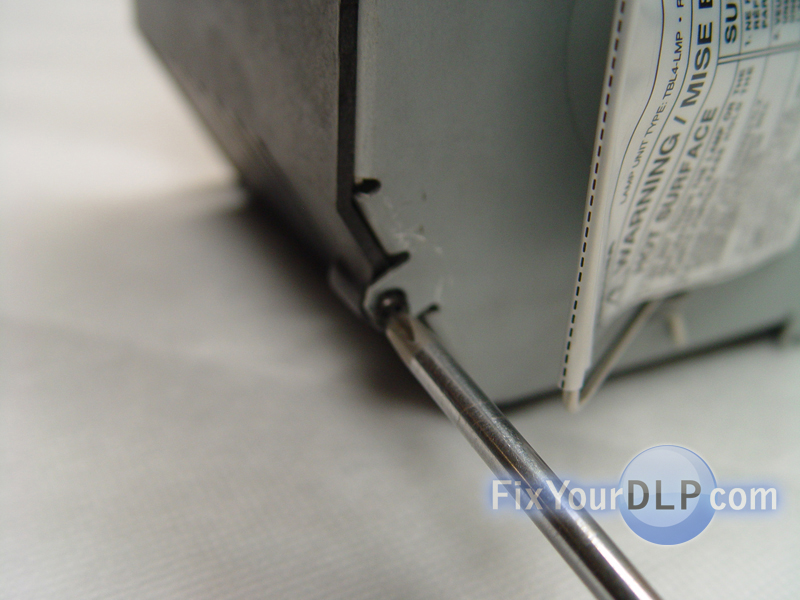

	Toshiba TBL-4LMP Lamp casing			1.- Turn the enclosure upside down and then you’ll see a screw that secures the back of the enclosure, remove it.

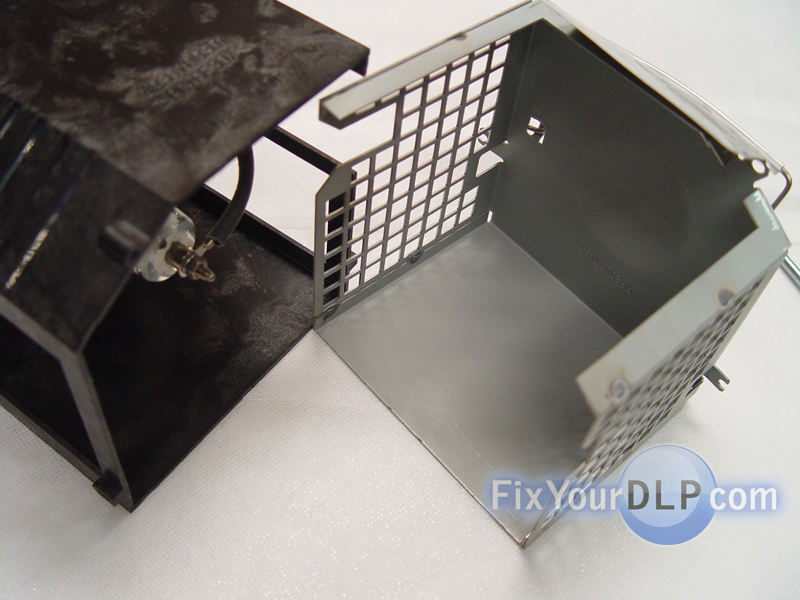

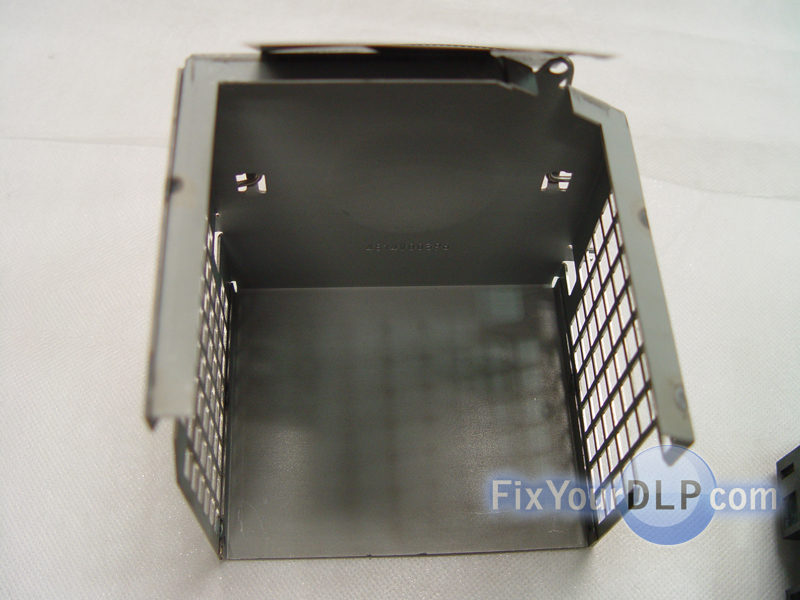

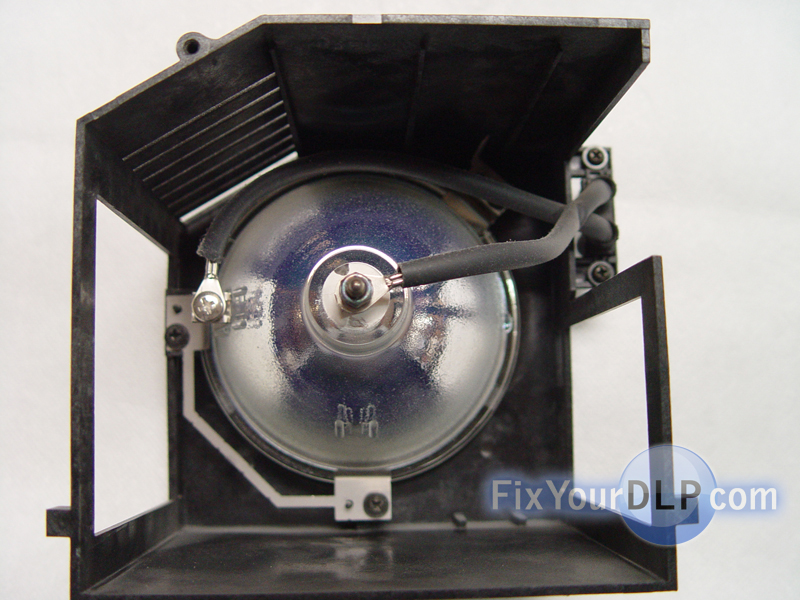

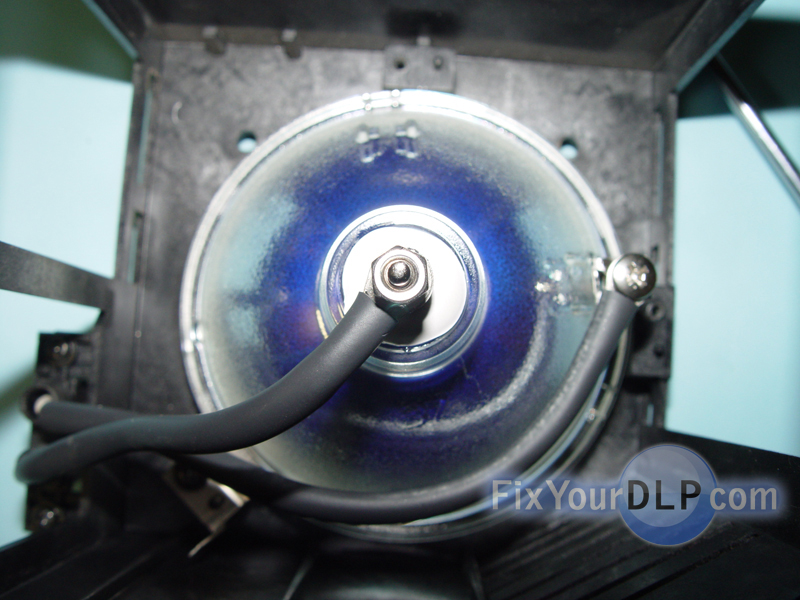

	2.- Pull the back metal cover out from the rest of the enclosure.			3.- Now you’ll see the bear bulb exposed, with two cables attached to the side and top.

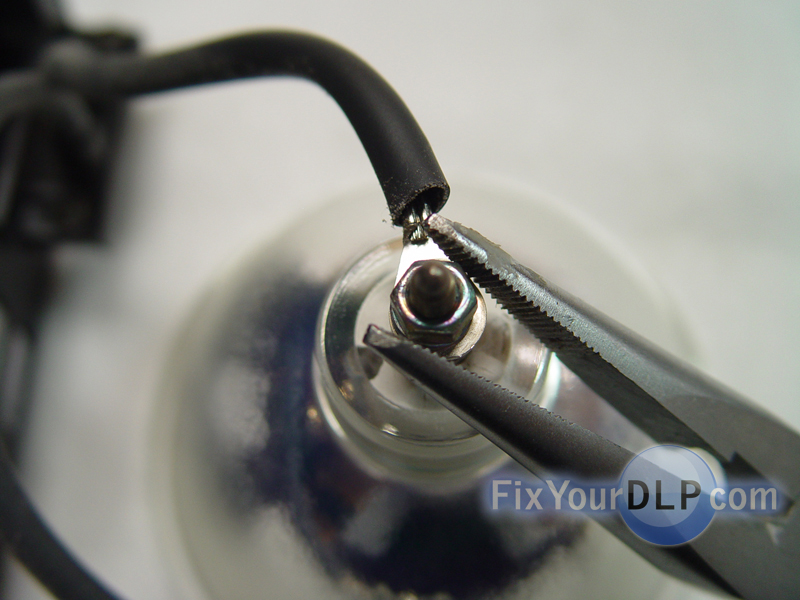

	4.- Use your Philips screwdriver to free the cable on the side of the lamp.			5.- Now with your pair of pliers you can uninstall the nut to remove the second cable.

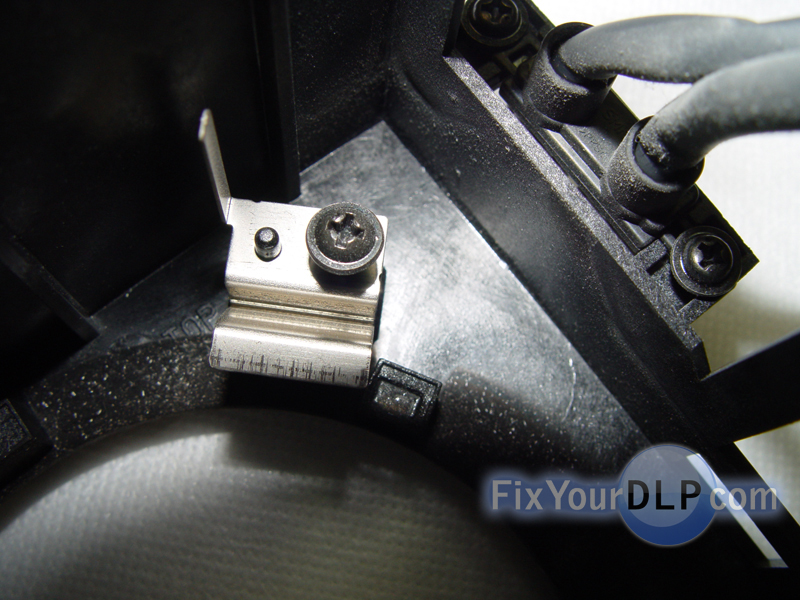

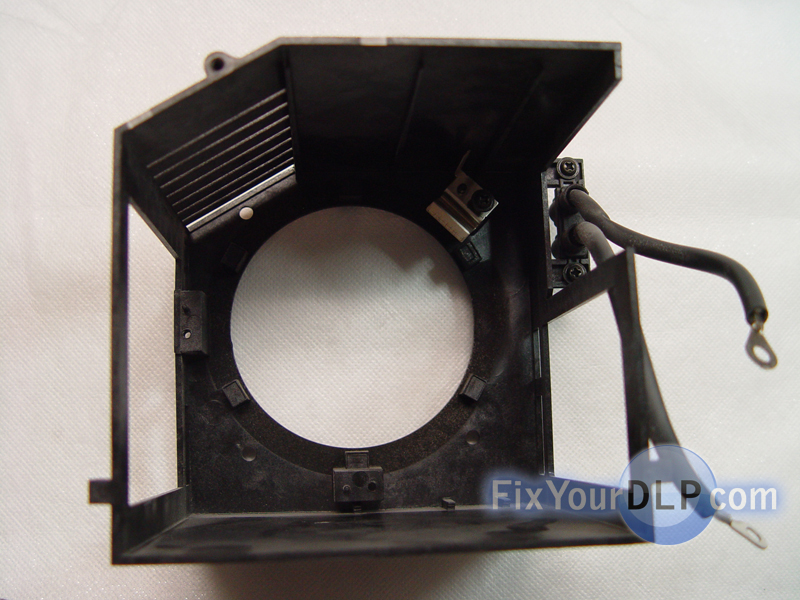

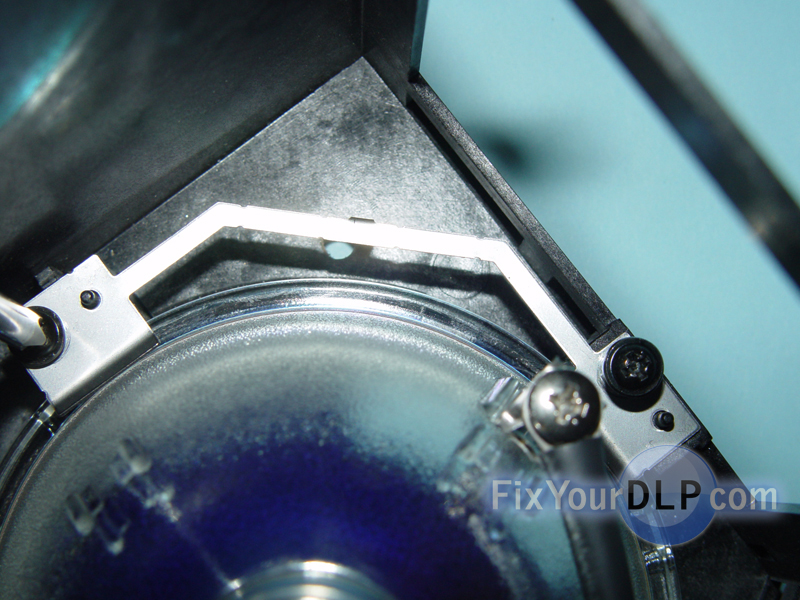

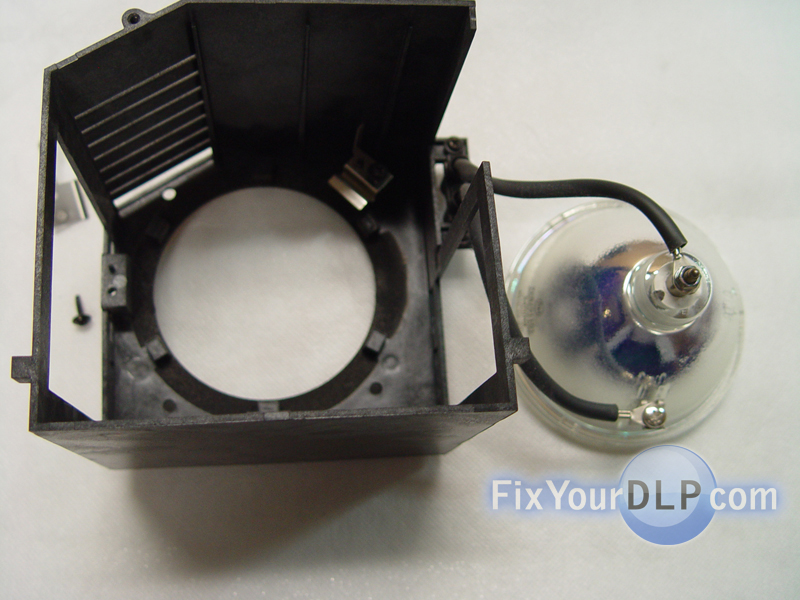

	6.- On the bottom of the lamp you’ll notice three screws and two metal clips that hold it in place, take them out.			7.- Pull the lamp out from the enclosure.

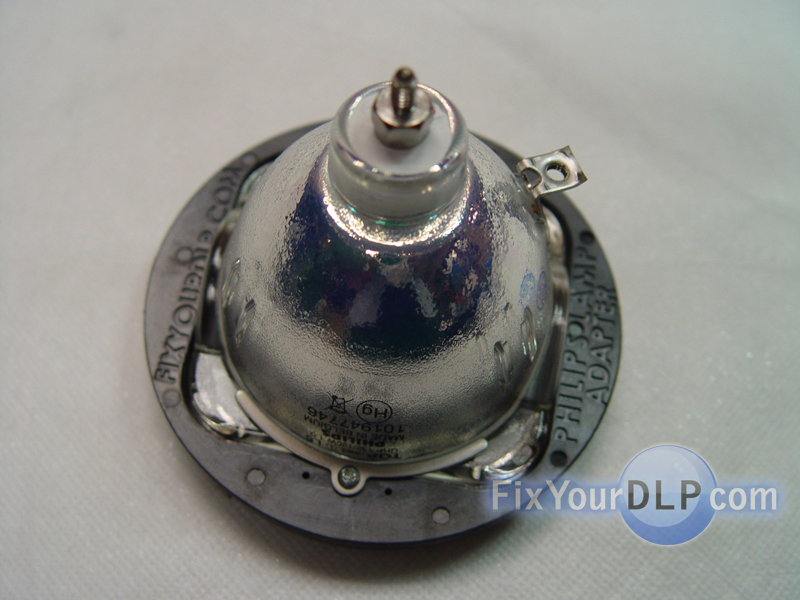

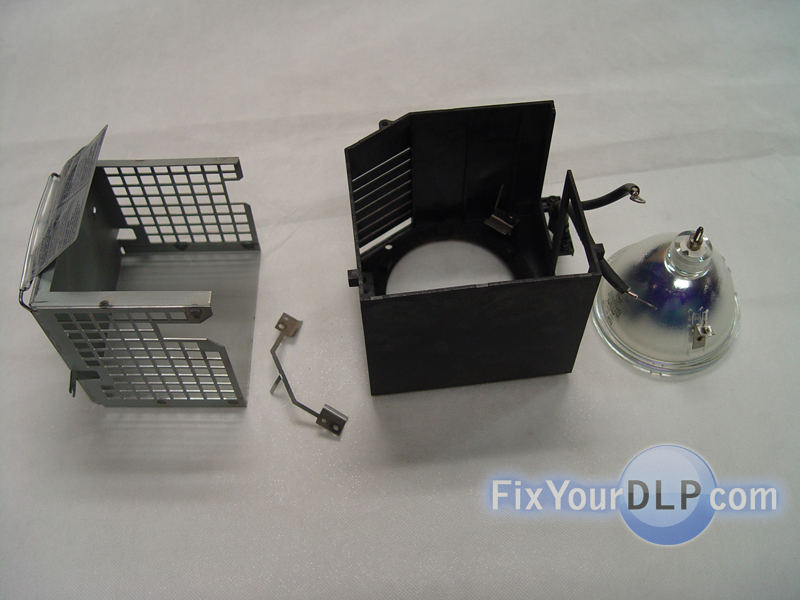

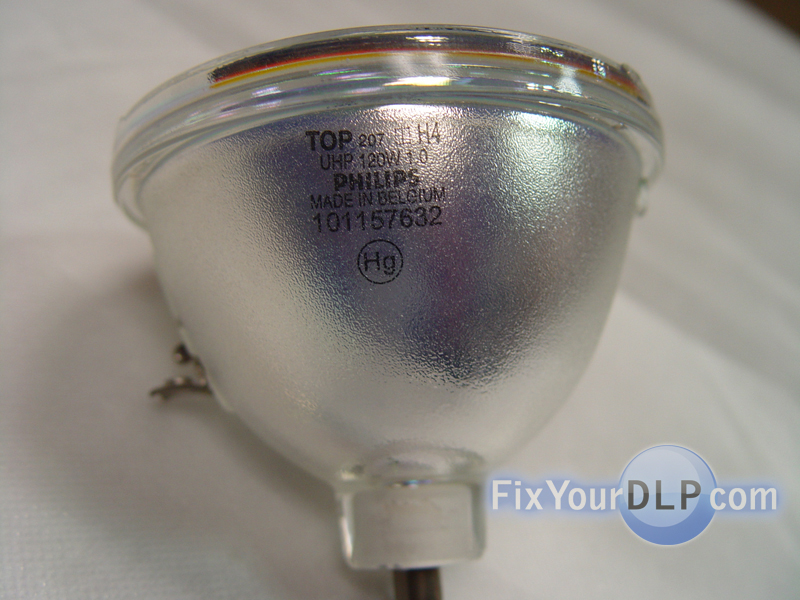

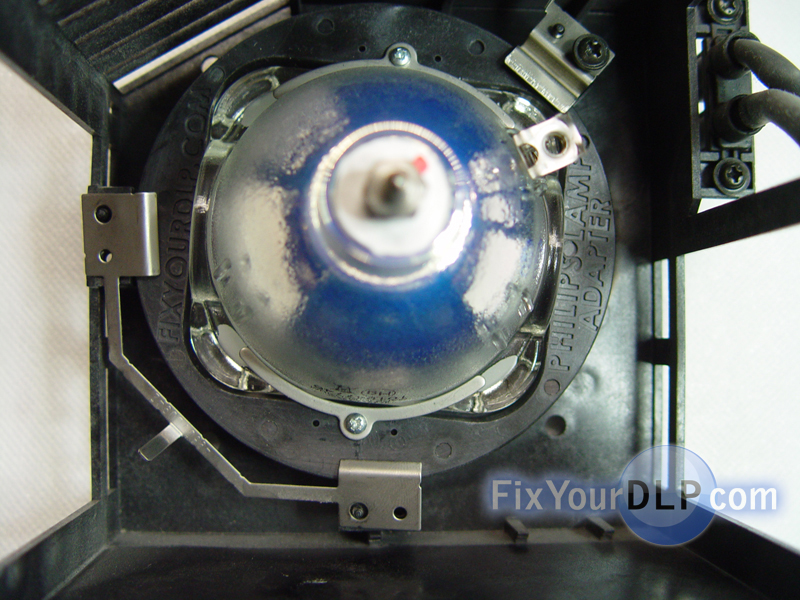

	A.- Now ready your new Philips lamp to replace the old one you took out.			B.- Place the new lamp on the base of the enclosure.

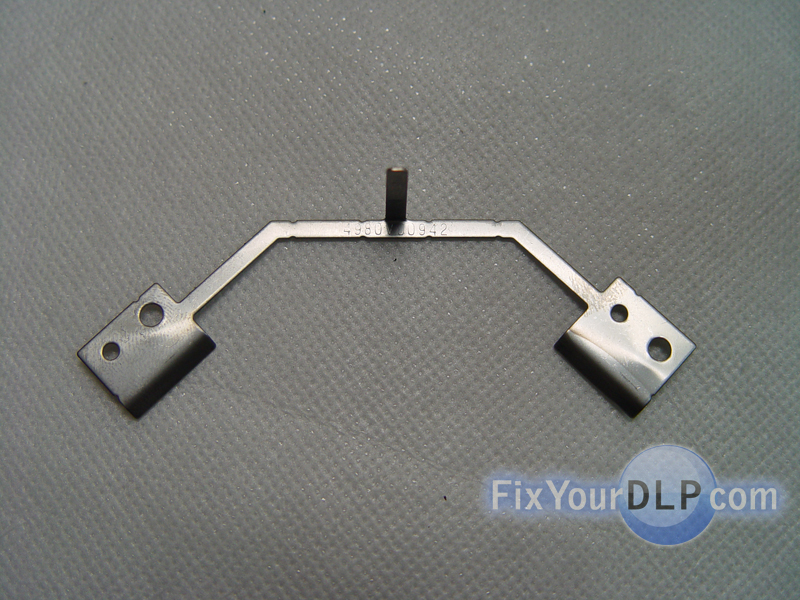

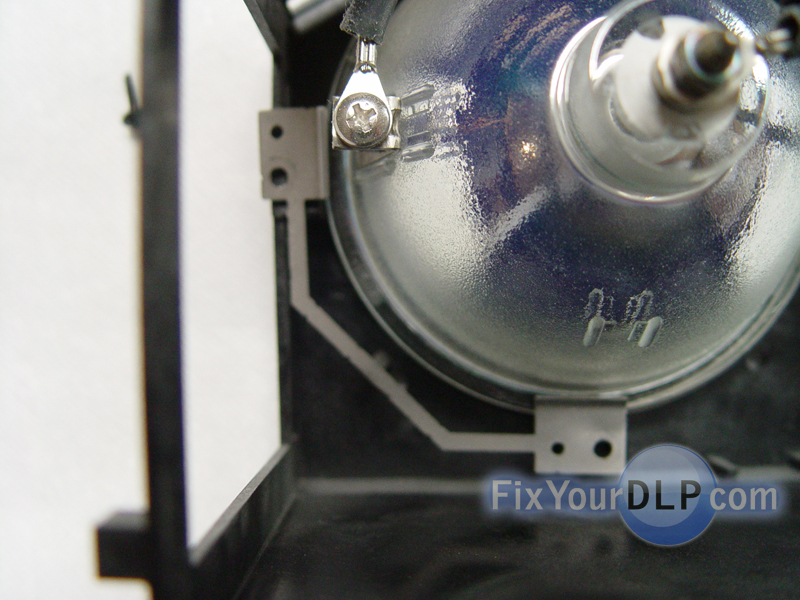

	C.- Reinsert the metal lamp holders on their original position and secure them with their designated screws.			D.- Place the cable at the top terminal of the lamp and secur it with the nut.

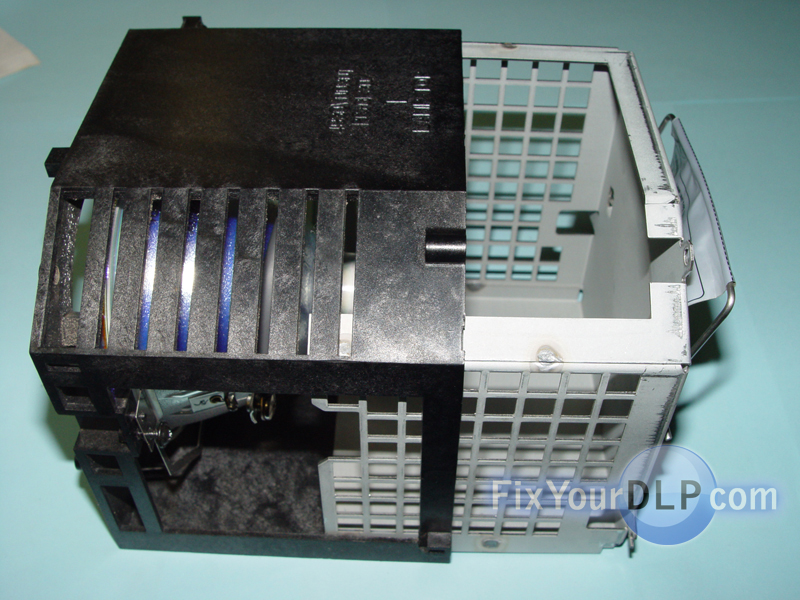

	E.- Attach the cable to the side of the lamp with the screw.			F.- Insert the back metal cover into the rest of the enclosure until it becomes one piece again.
	G.- Secure it by installing the screw on the back.			H.- Congratulations, you have successfully replaced your lamp.

IMPORTANT: After installing the replacement bulb, you should wipe it with a clean cloth to avoid any dirt or oil. Our hands are naturally oily… this could reduce considerably the life span of the new lamp.
