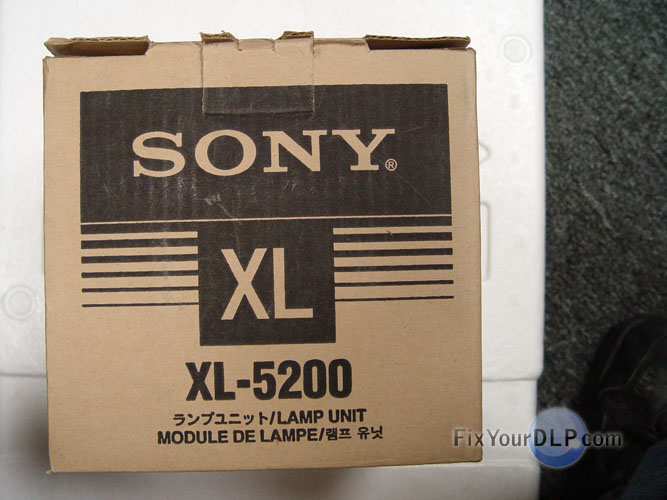

Sony XL-5200 How To Guide Replacement DLP TV Lamp Guide

Click below to buy this lamp now:

Lowest Prices Anywhere!

Compatible TV Models: KDS-50A2000, KDS55A2000, KDS-60A2000, KDS60A3000, KDS50A2020, KDS55A3000.

Assembly part numbers:2-675-114, 2-675-117, AM0000211.

NORMAL DISCLAIMER:
— Do NOT purchase generic brand lamps such as LTI, APO or third-party manufacturers such as OSRAM.

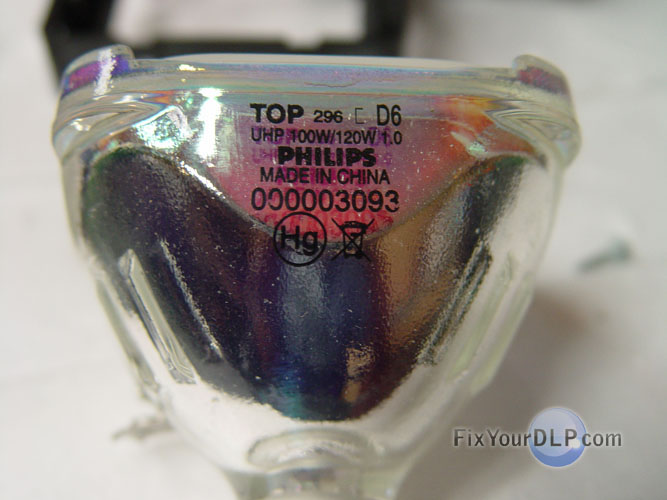

These lamps were NOT engineered with and for your TV…only your Philips lamp has been engineered to work flawlessly and output the best possible color. Above that, it just doesn’t make sense to choose an aftermarket lamp for a $5-$10 difference (and in many cases they are more expensive!!). Be a smart consumer and do your research! Discount-Merchant.com promises to be the low price leader in all Projection TV Lamps they carry…if this is not true, let us know and we’ll fix it!

Tools Required: Standard Philips or Flathead screwdriver, Pair of Pliers, A new lamp.

Time Required: About 15 minutes.

Abstract: This guide is being published to show how easy it is to replace your original Sony XL-5200 Lamp.

NOTE: We recommend you to use latex gloves when handling the new bulb, to avoid any dirt or oil. Our hands are naturally oily…The oil residue from our hands can cause premature failure of the lamp if the front side of the lamp is not wiped down after the installation. It doesn’t hurt to do a final wipe with a clean, non-abrasive, lint-free cloth before reinstalling your lamp…

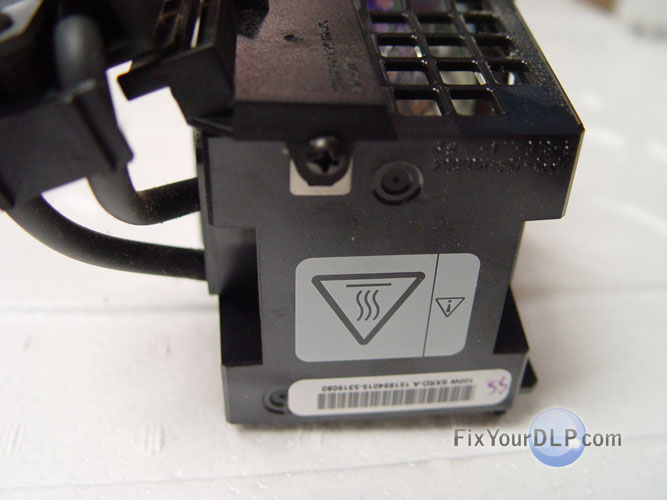

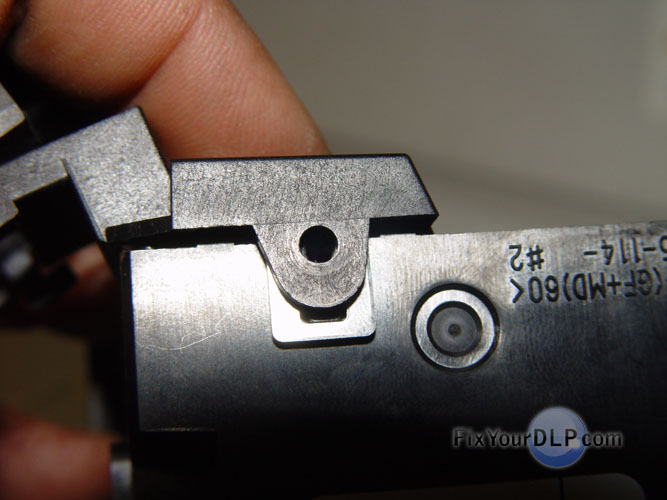

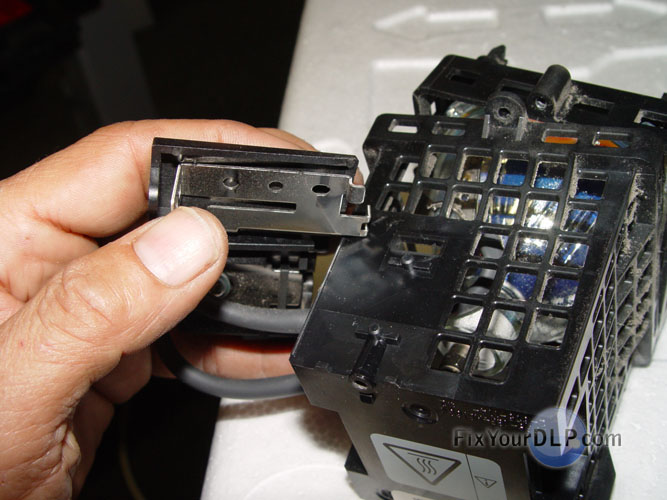

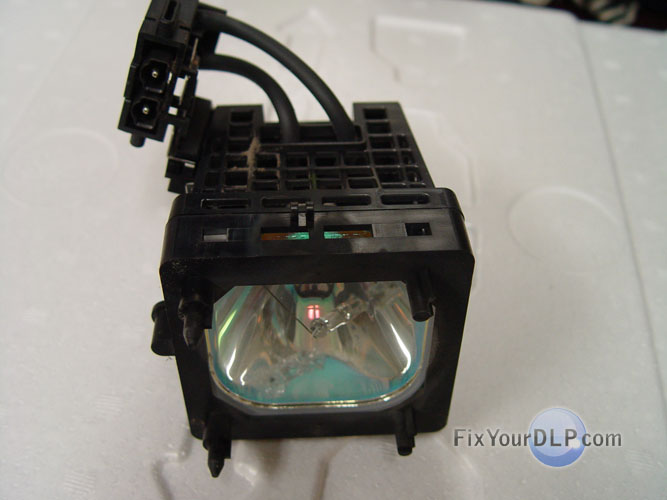

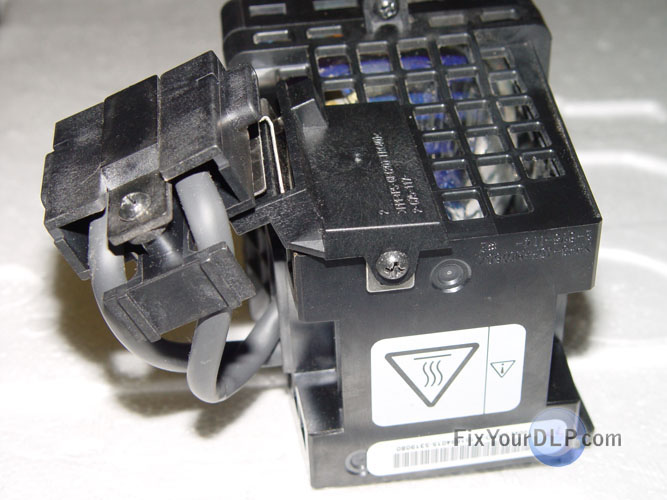

	Sony XL-5200 Lamp casing			1.- The first step is to locate the connector base on the side of the enclosure and closely observe how it’s attached.

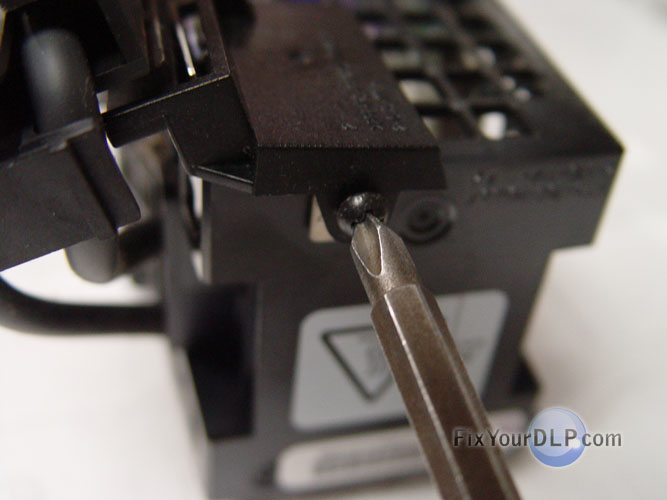

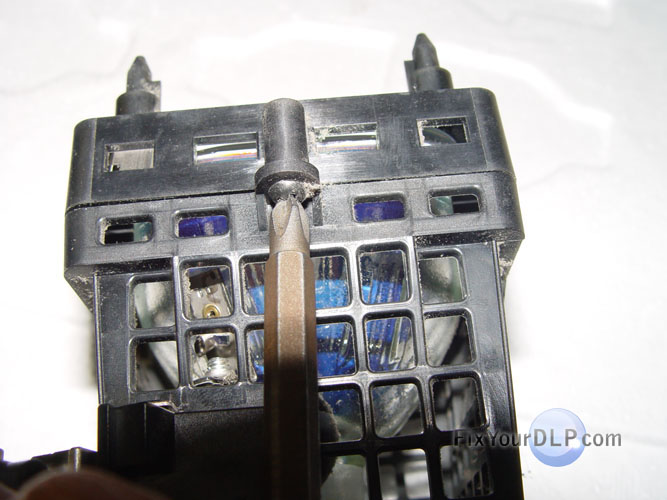

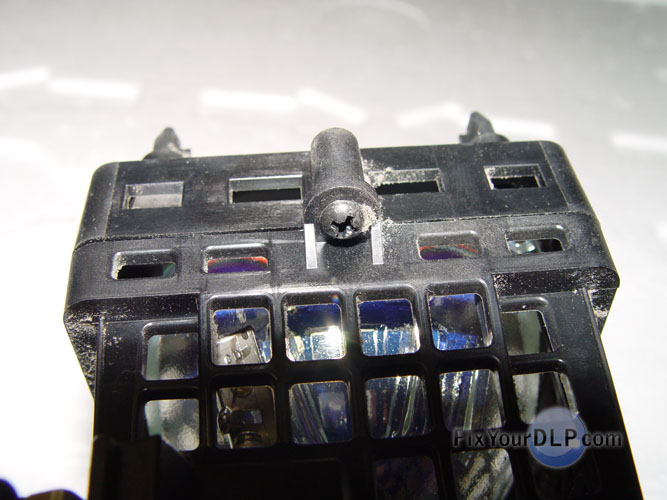

	2.-Now with your screw driver you must remove the screw to set loose the connector.			3.-Also remove the one holding the casing and the bulb base together.

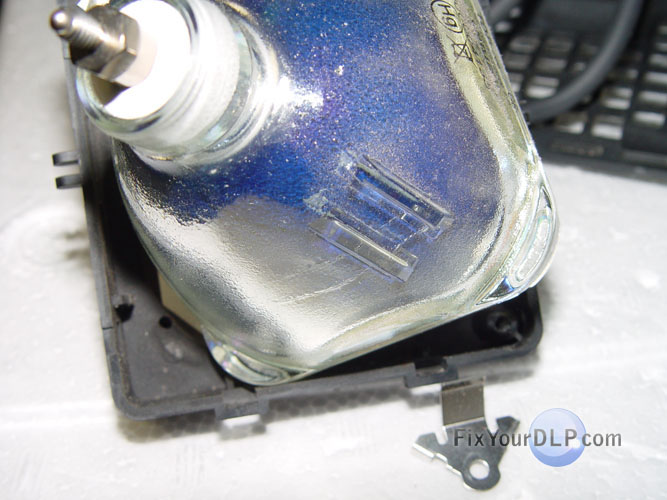

	4.- This is what the lamp base looks like once the back of the casing is removed.			5.- On two of the corners you’ll find to securing clips, one has a screw and holds the lamp firmly in to place.

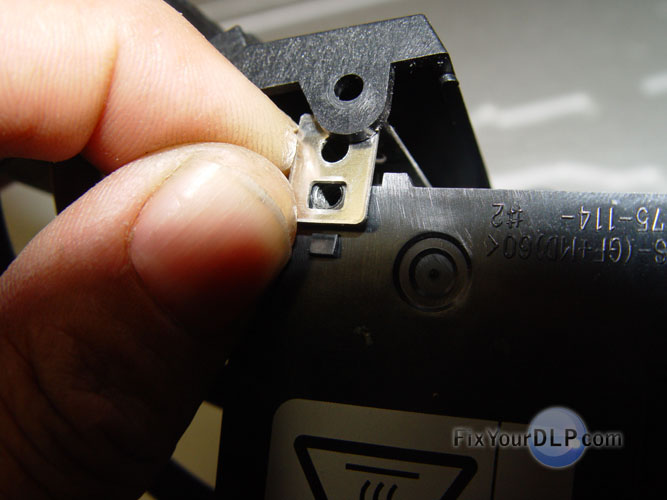

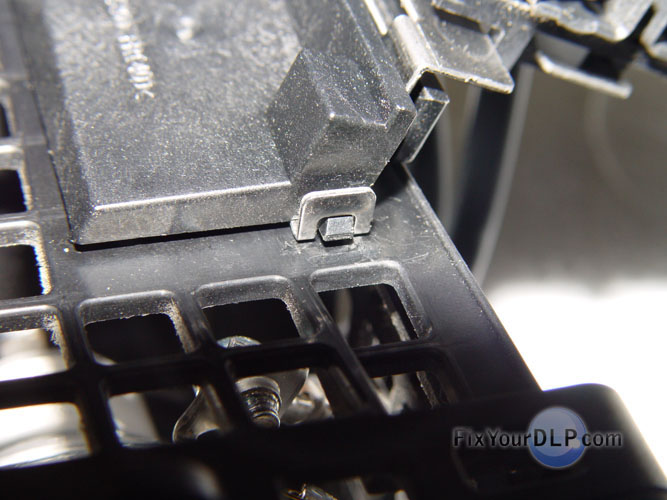

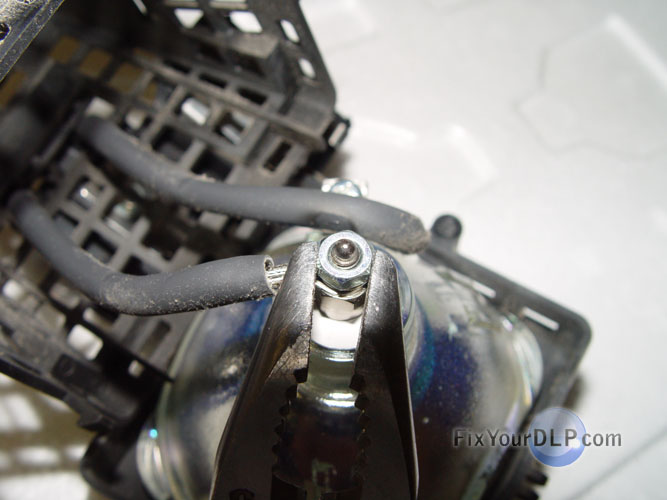

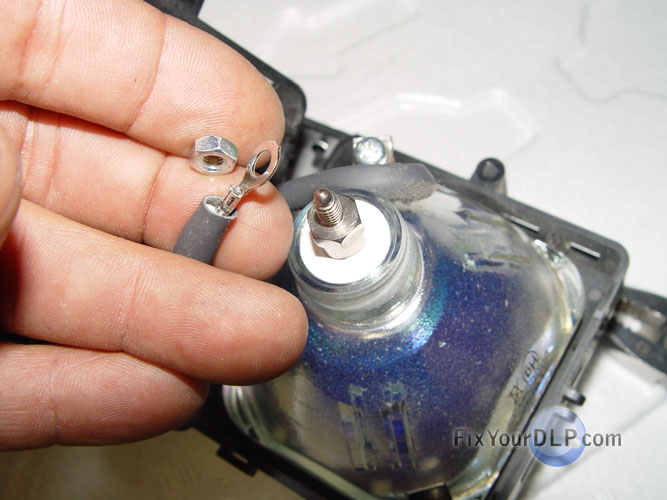

	6.- The other is a more simple clip which comes of real easy, and doesn’t need any unscrewing.			7.-Take your pair of pliers and remove the nut on the top terminal of the bulb.

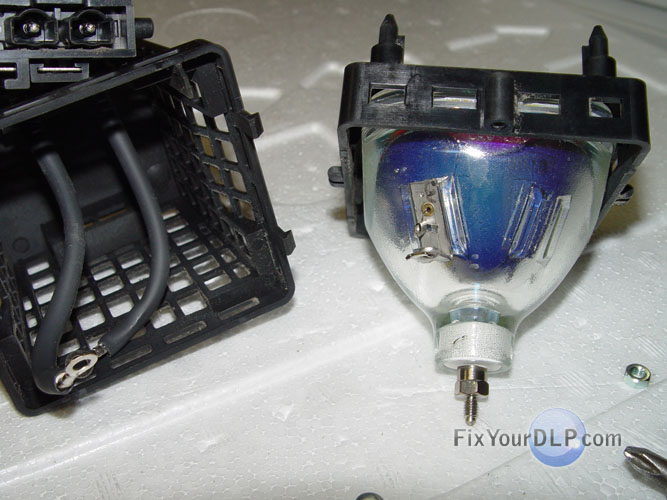

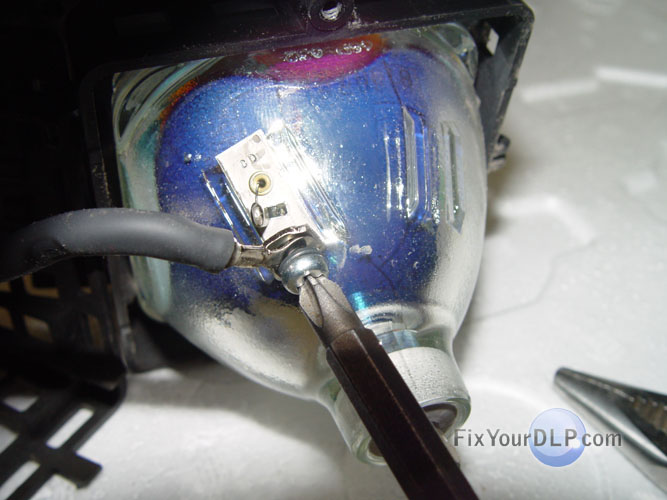

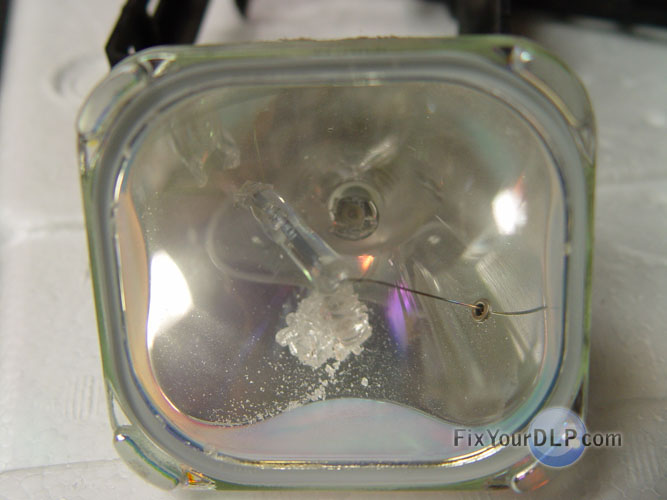

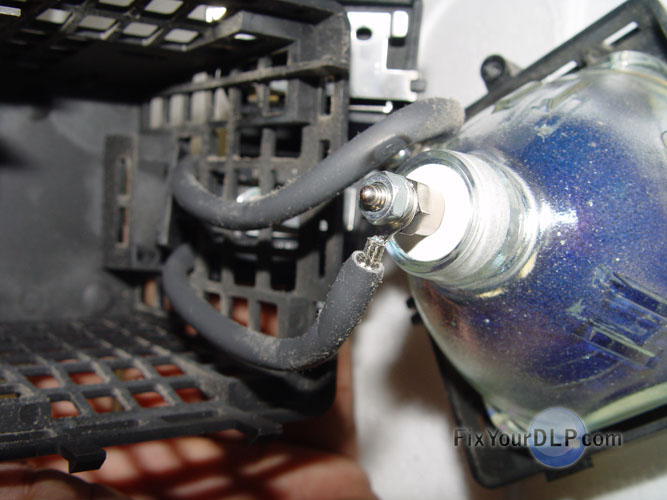

	8.-Next remove the screw on the side of the bulb to completely release the lamp.			9.- This is the back of the casing once it has been released and separated from the base.

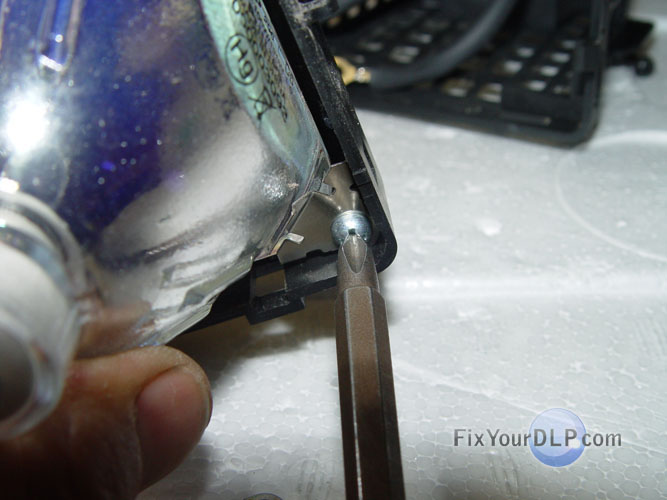

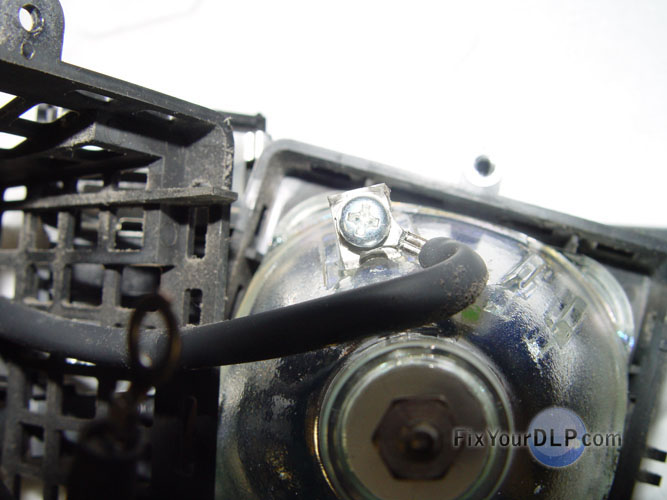

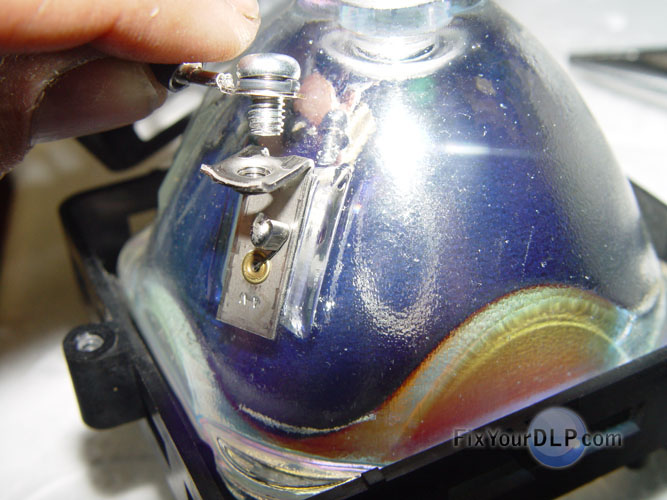

	10.- Get ready to swap your new lamp in the same way you took out the old one.			A.-Start by connecting the cables back to the bulb; use your screw driver to install the one on the side.

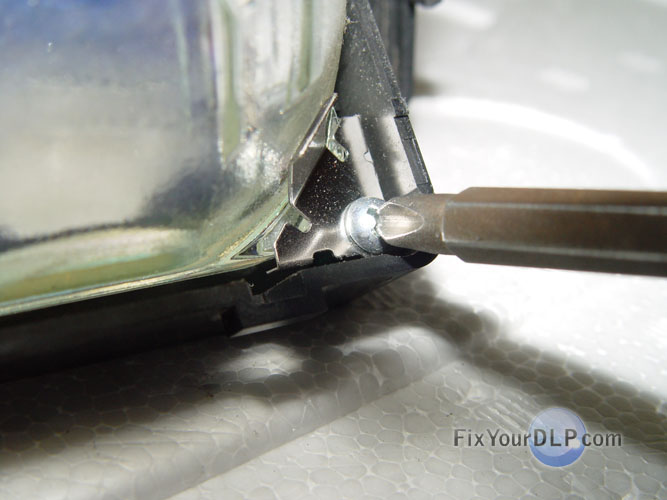

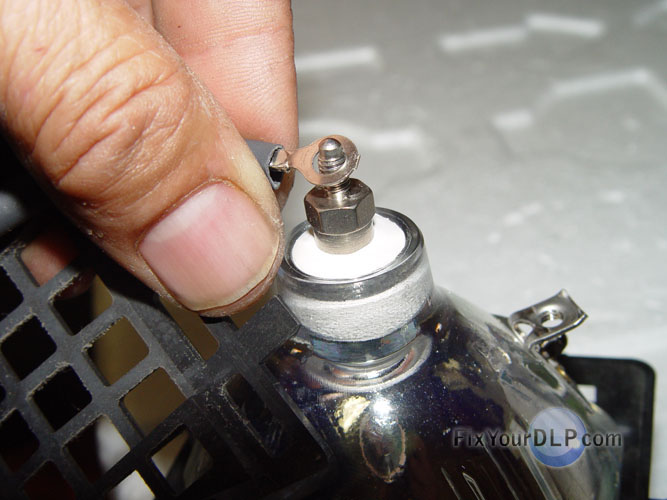

	B.-On the top terminal be careful not to over tighten the nut too much because it might damage the lamp.			C.-Now screw the metal clip on the correct corner.

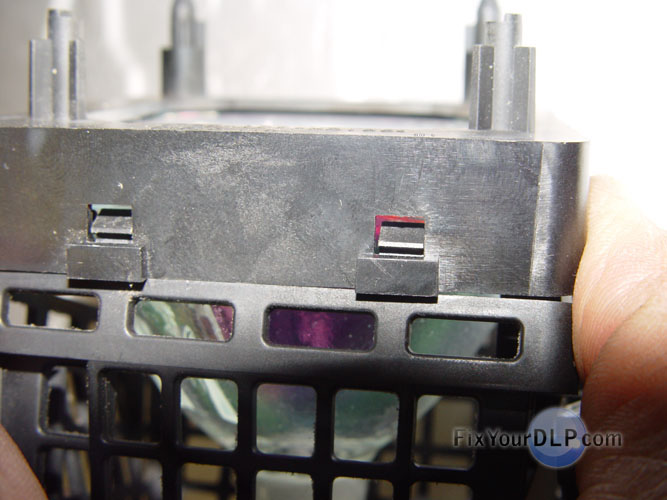

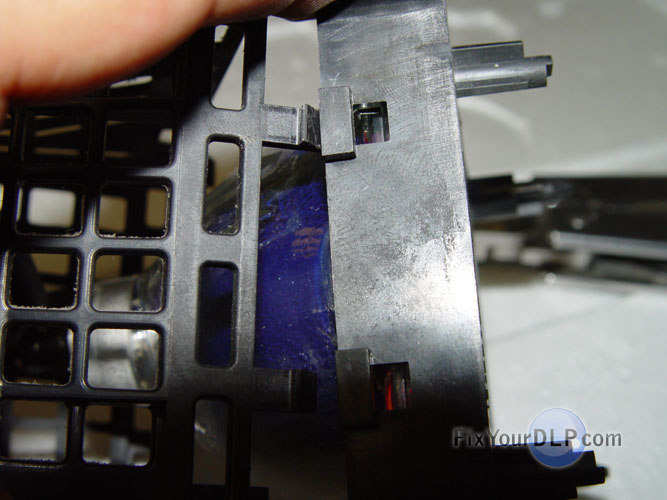

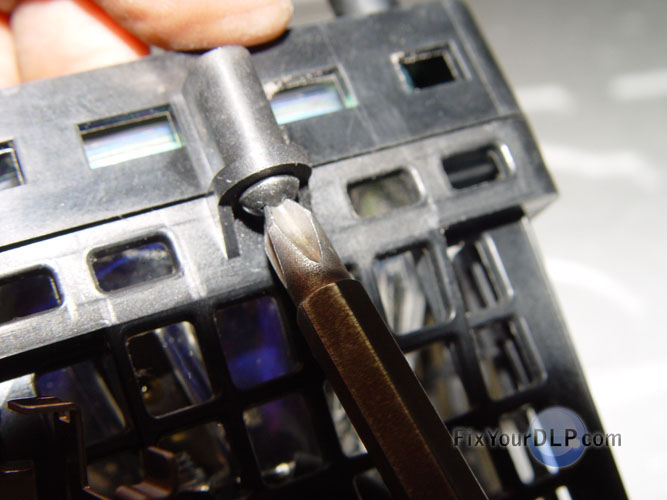

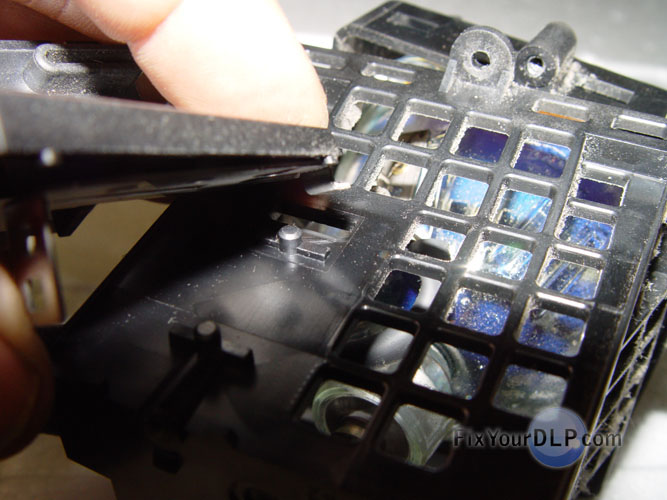

	D.- And place the simple clip with no screw on the opposite corner.			E.-Conjoin both casing pieces, you’ll hear a click that means its connected and place the screw to secure them.

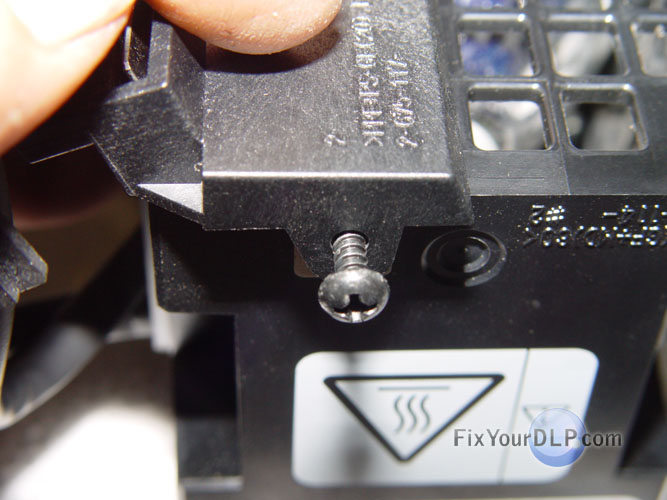

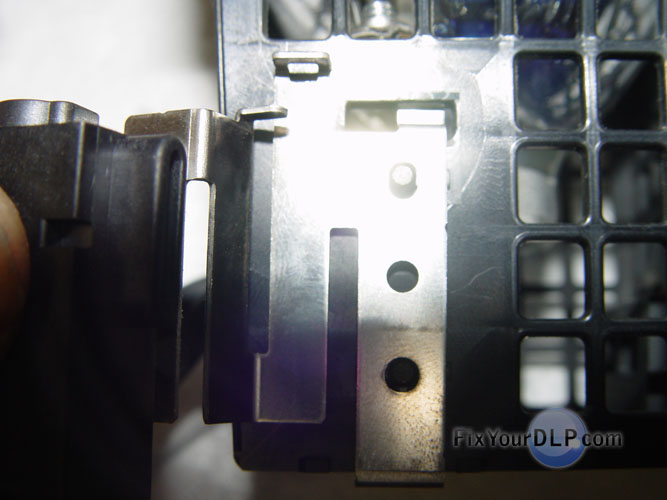

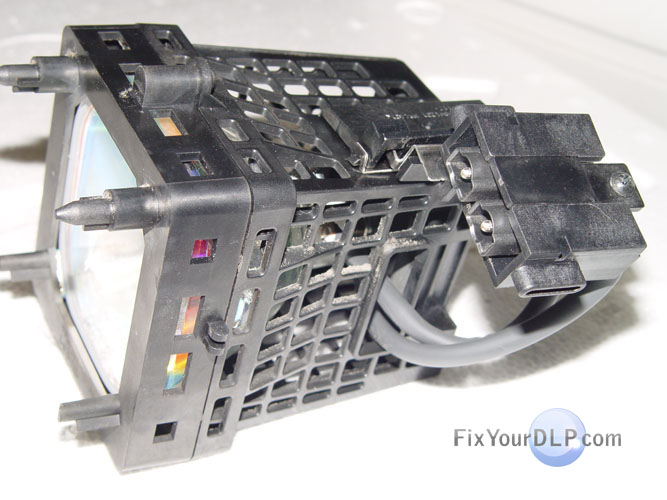

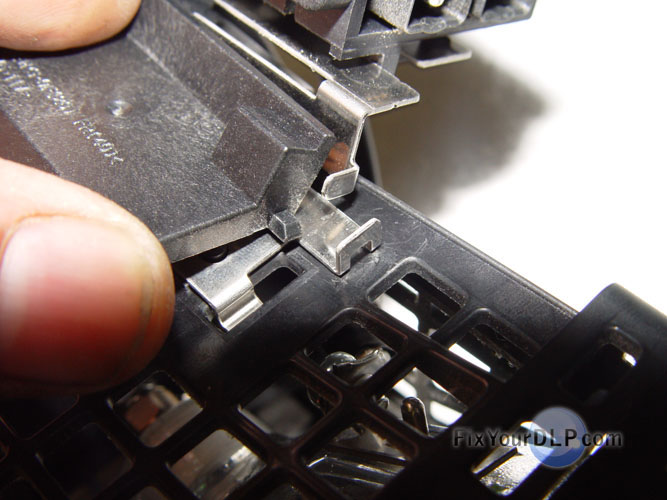

	F.- Finally insert the connector base correctly in its place and screw it back on.			G.-And You’re finished. XL-5200

IMPORTANT: After installing the replacement bulb, you should wipe it with a clean cloth to avoid any dirt or oil. Our hands are naturally oily…this could reduce considerably the life span of the new lamp.
