Compatible TV Models: KDS-70Q006.

Assembly part numbers: 2000265, 2-176-746, 2-176-747, 101289128.

NORMAL DISCLAIMER:
Be a smart consumer and shop around, do your research! Discount-Merchant.com promises to be the low price leader in all Projection TV Lamps they carry…if this is not true, let us know and we’ll fix it!

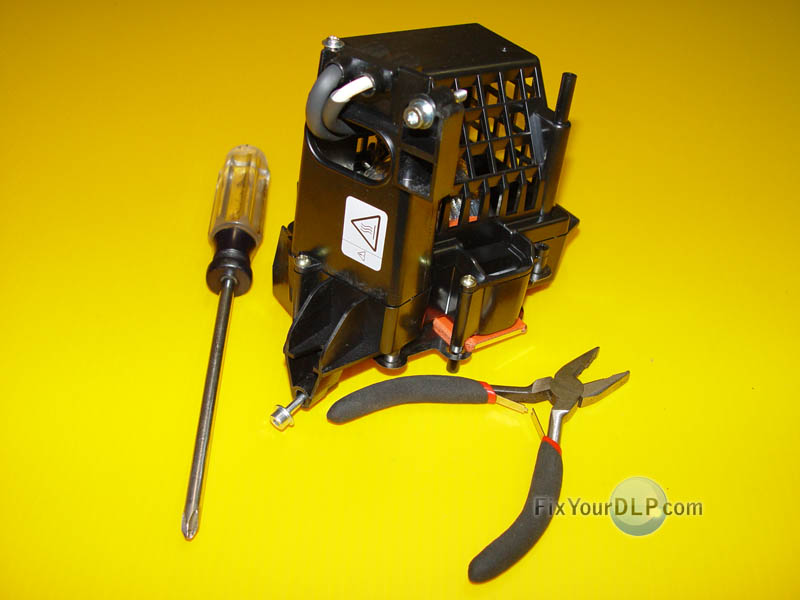

Tools Required: Standard Philips and, A new lamp.

Time Required: About 15 minutes.

Abstract: This guide is being published to show how easy it is to replace your original Sony XL-5000 Lamp.

NOTE:We recommend you to use latex gloves when handling the new bulb, to avoid any dirt or oil. Our hands are naturally oily…The oil residue from our hands can cause premature failure of the lamp if the front side of the lamp is not wiped down after the installation. It doesn’t hurt to do a final wipe with a clean, non-abrasive, lint-free cloth before reinstalling your lamp…

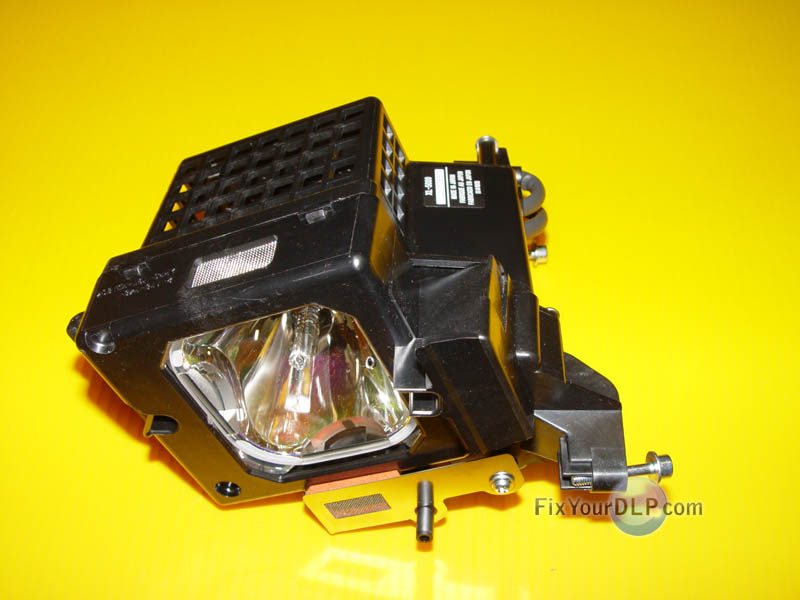

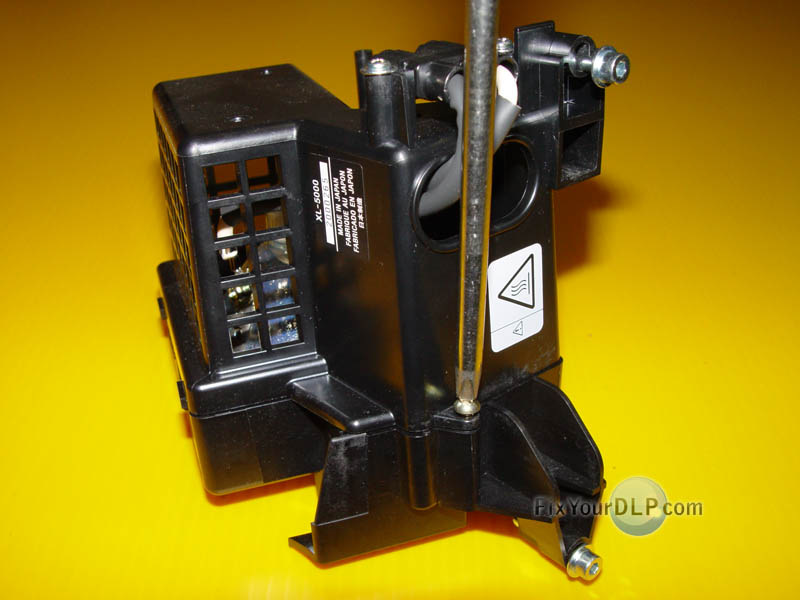

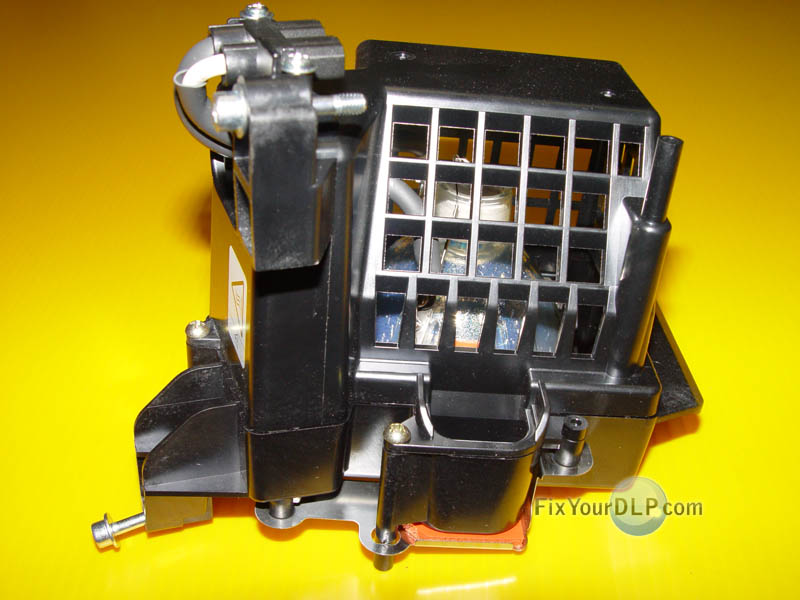

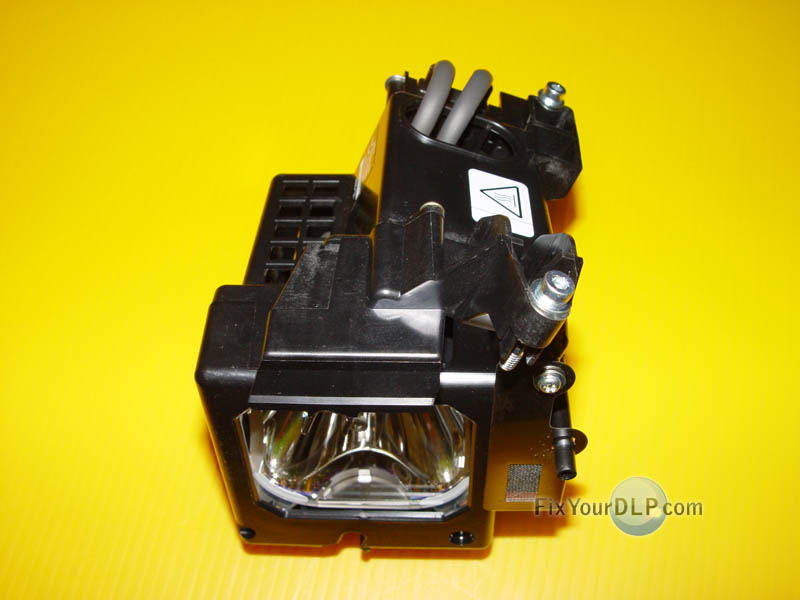

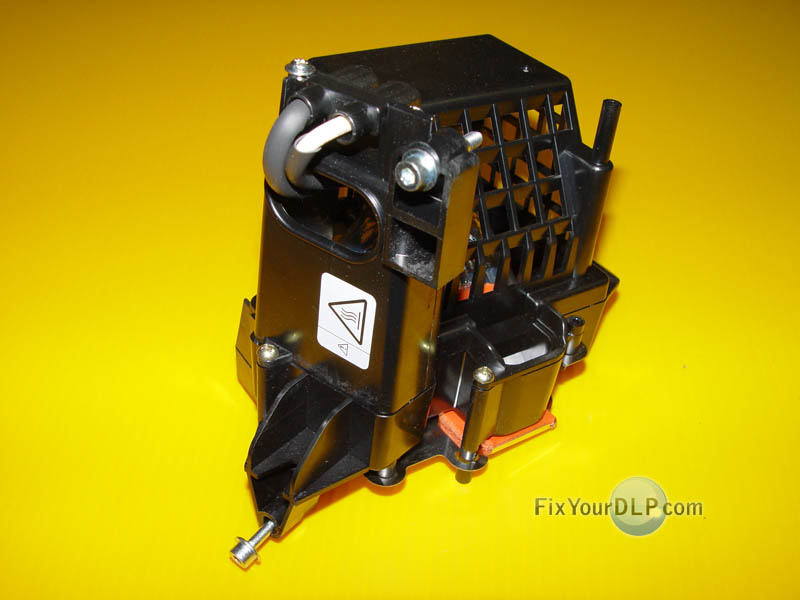

	Sony XL-5000 Lamp casing			1.-You must start by removing the screw on the side of the lamp, just below the cable connector.

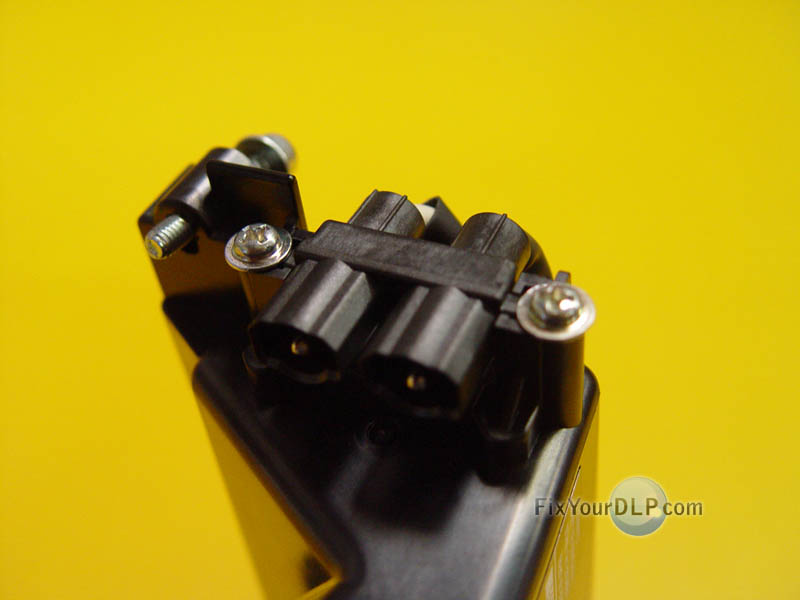

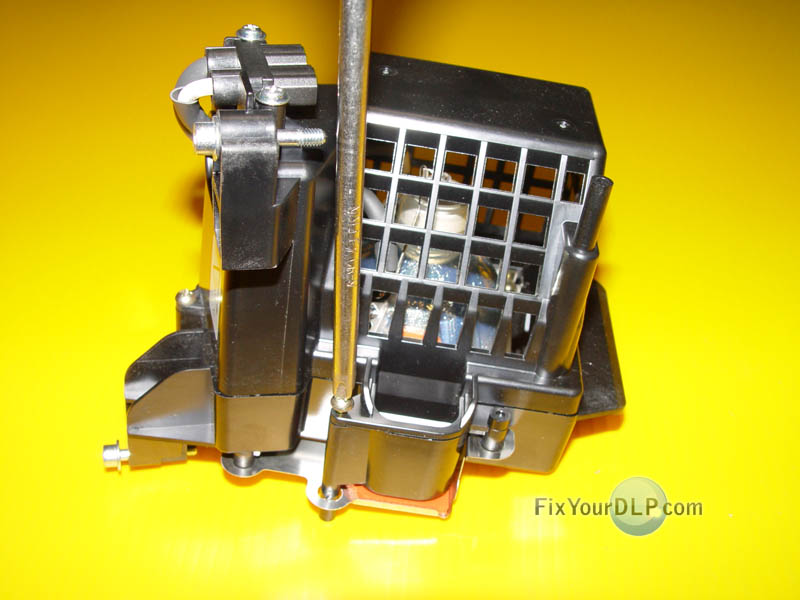

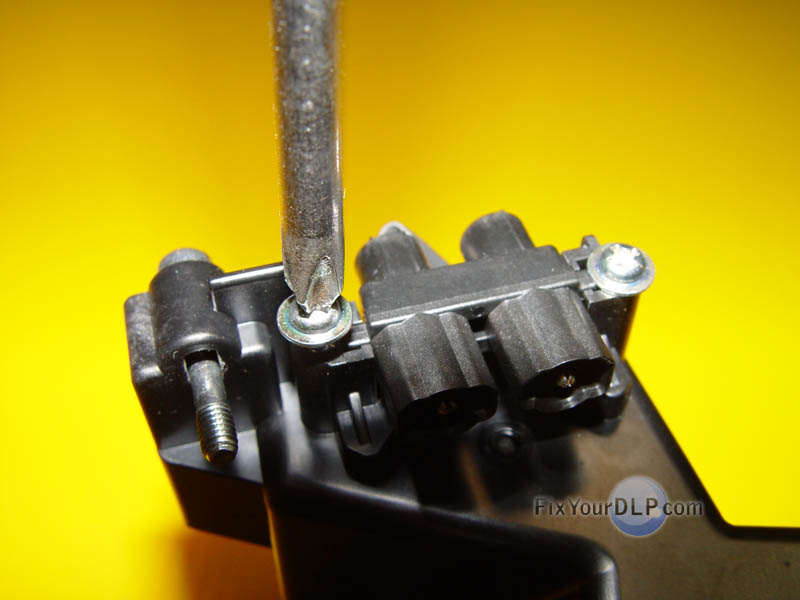

	2.-Now remove the second screw on the top, you’ll find it near the air dock.			3.-Also you’ll have to take out two other screws holding down the cable connector.

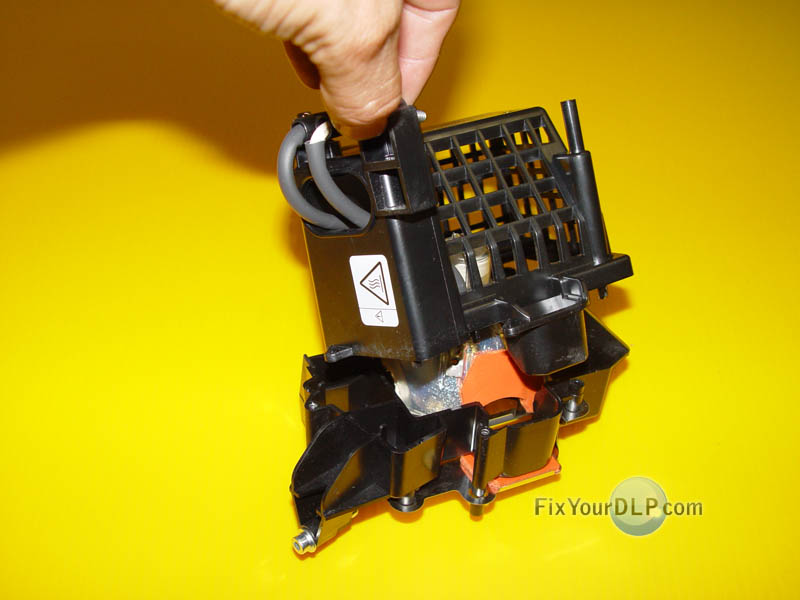

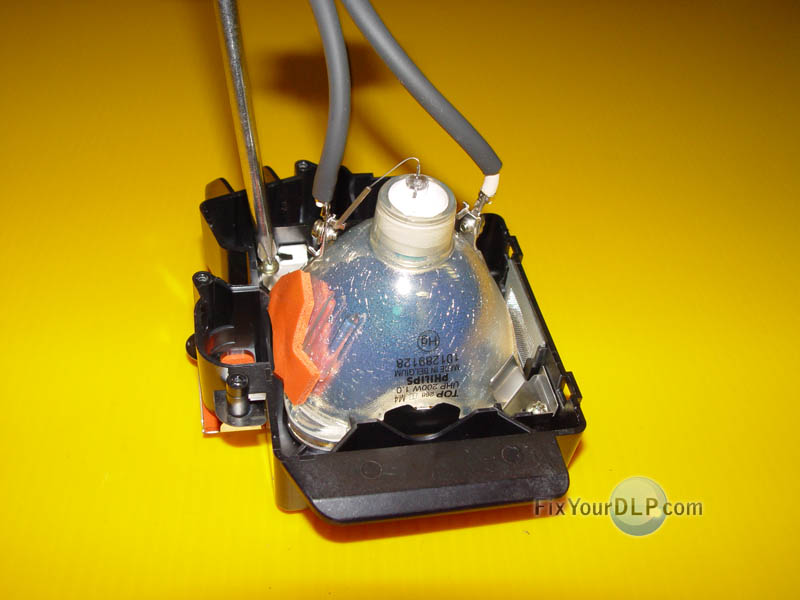

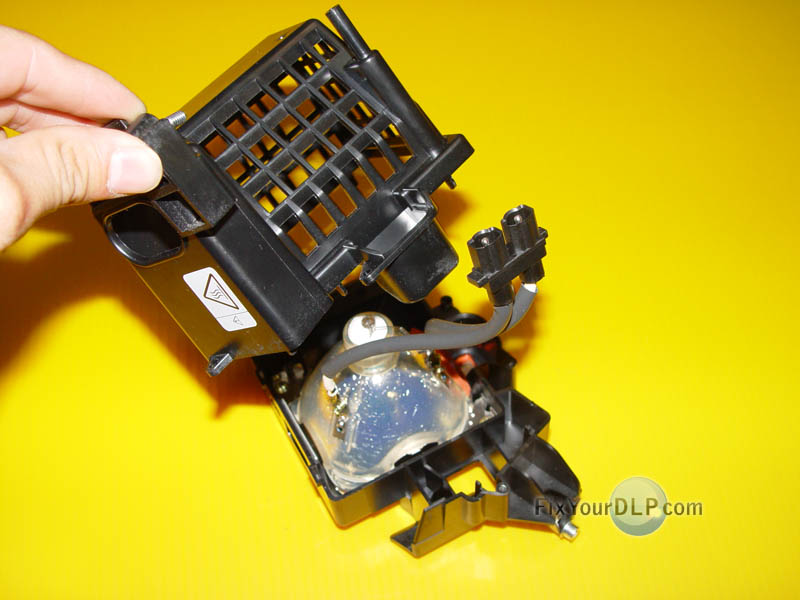

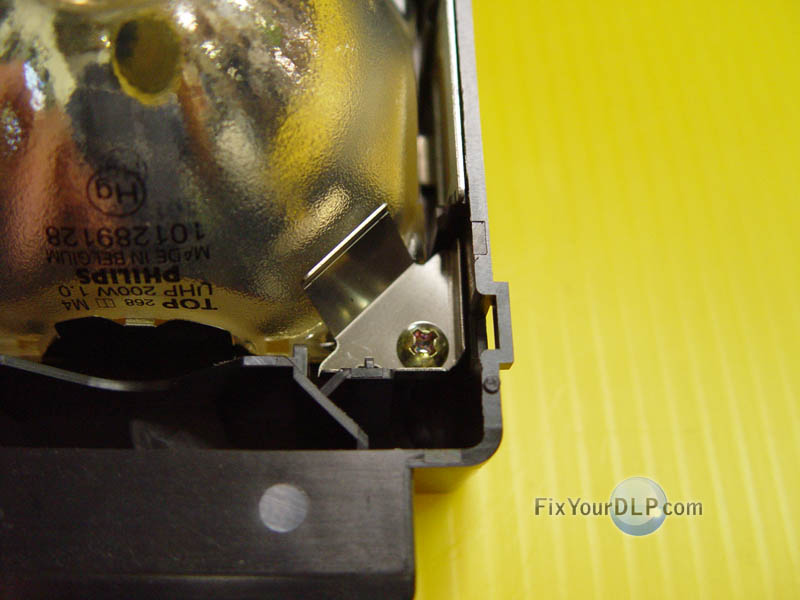

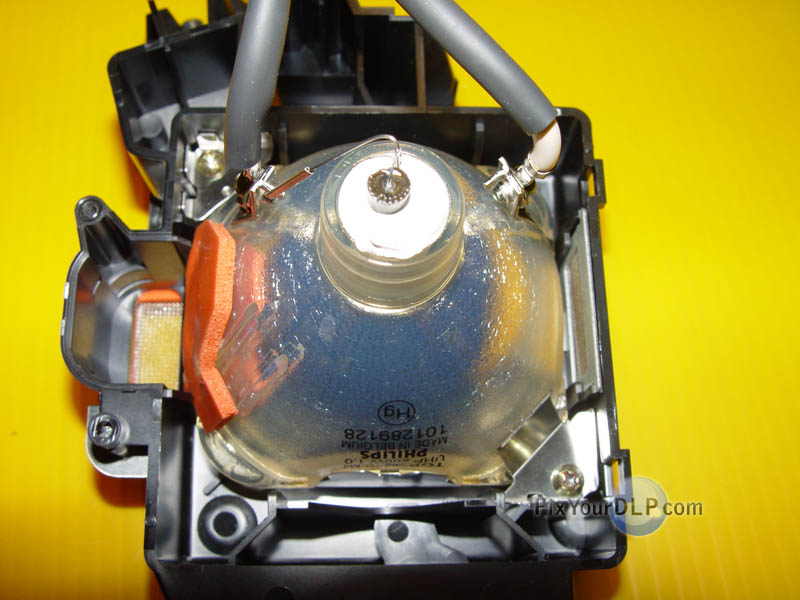

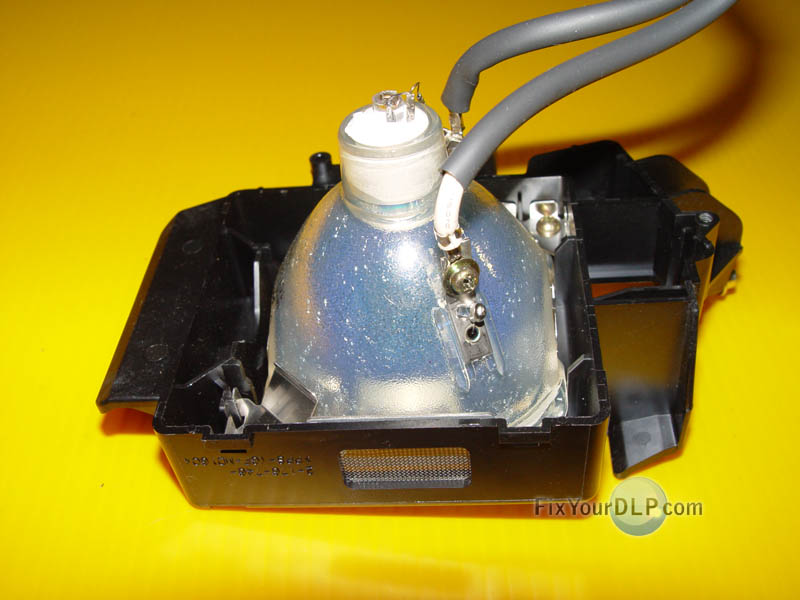

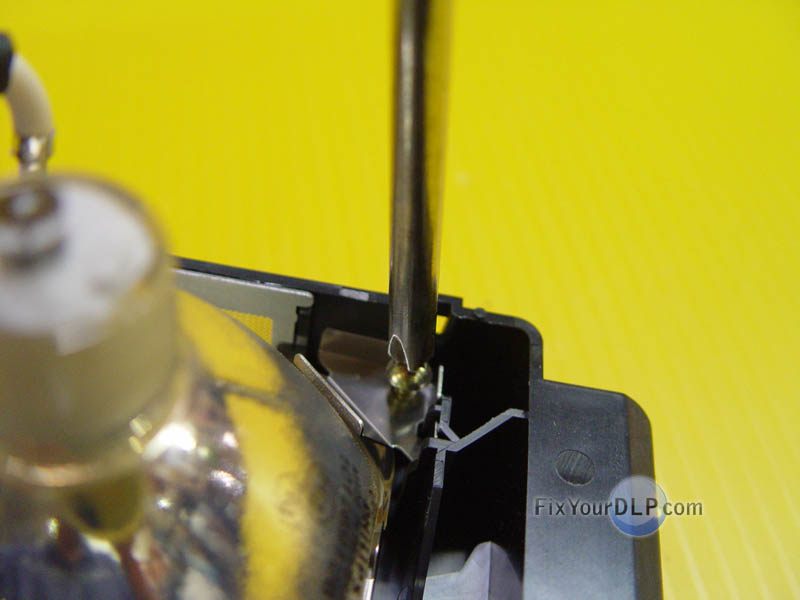

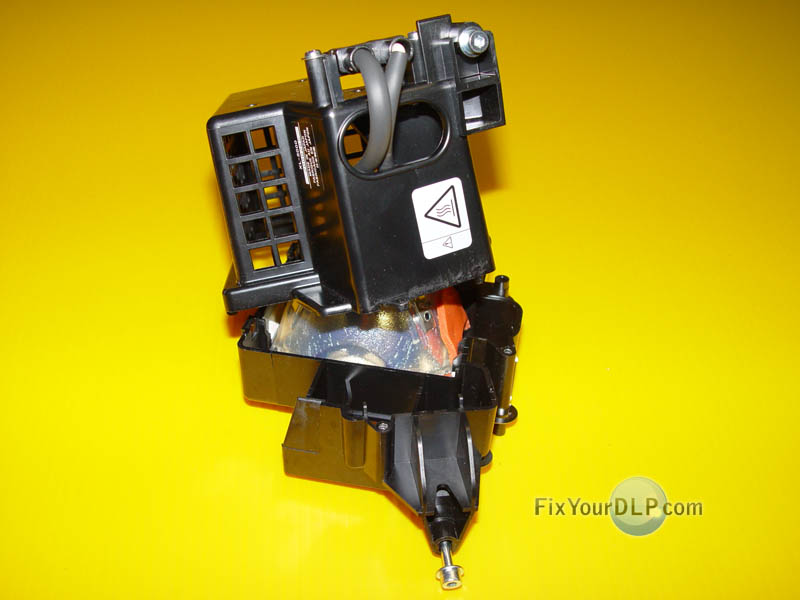

	4.-First take out the connector and carefully remove the back of the enclosure by lifting it gently.			5.-Inside you’ll find the bare bulb being secured by two clips, unscrew one to remove and loosen up the other.

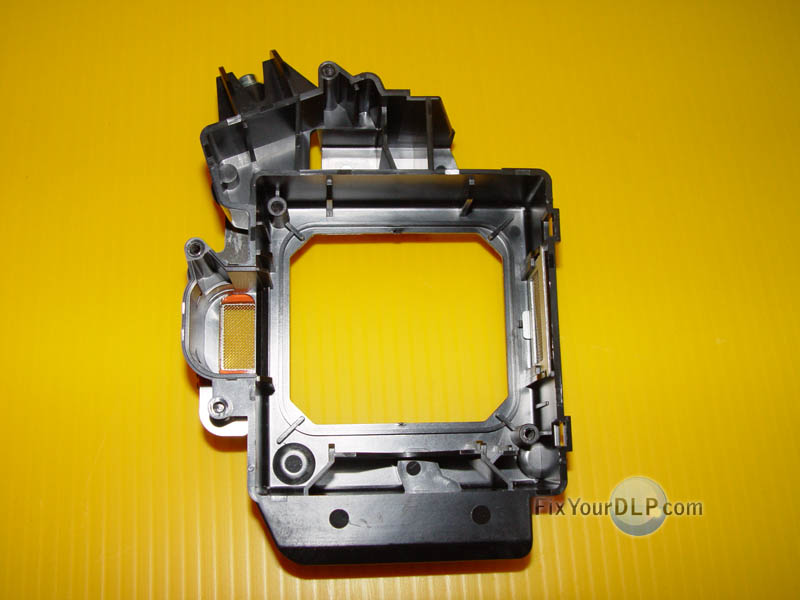

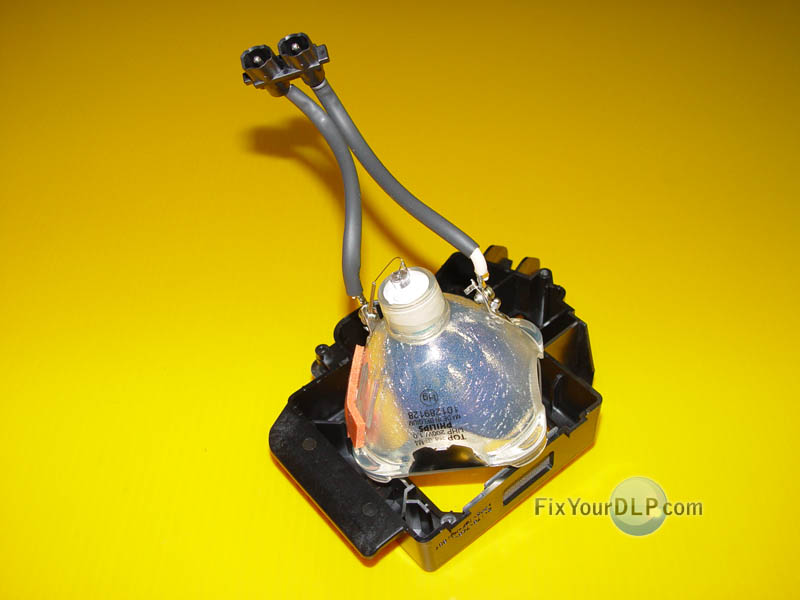

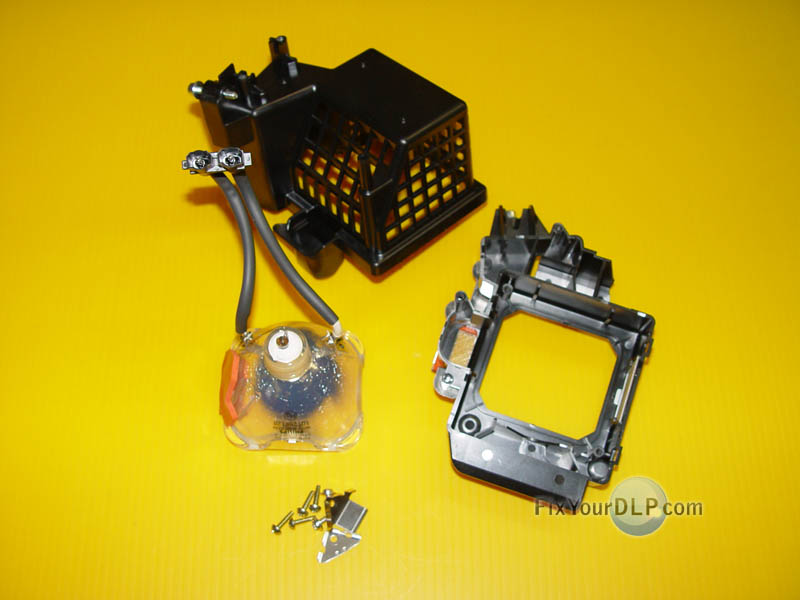

	6.-Now take the old lamp out so you can swap it with the new one.			7.-This is what your new bulb should look like, you’re going to install it the same way you took out the old one.
	A.-Insert the new lamp in the bulb base bypassing the loosened clip.			B.-Screw back the removed clip and tighten the other one, the bulb should be securely tighten until it can’t move.

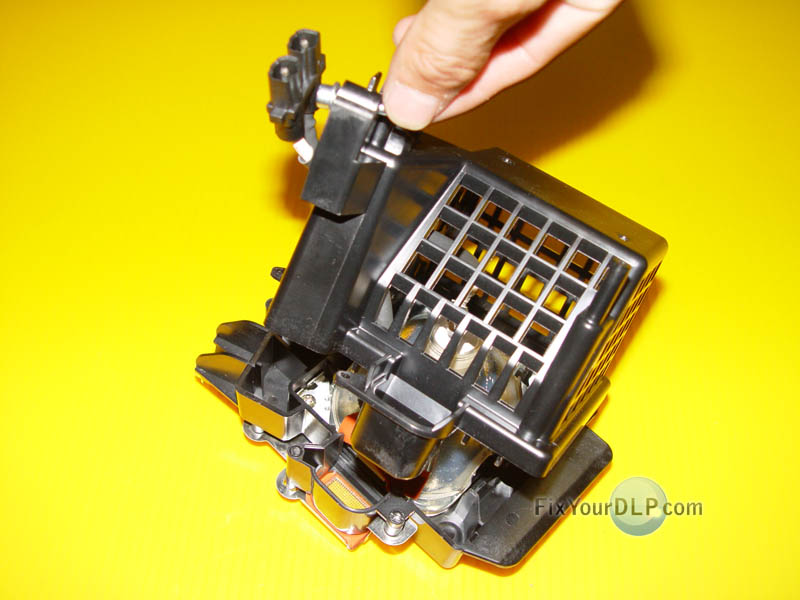

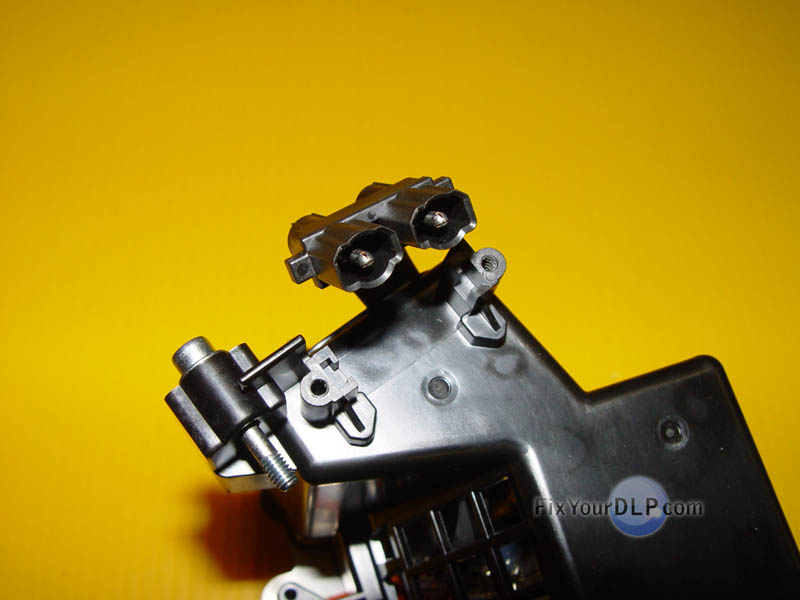

	C.-Place the back of the enclosure on top of the lamp base; make sure the side clips are correctly inserted.			D.-The cable connector must now be reinserted back to its original place.

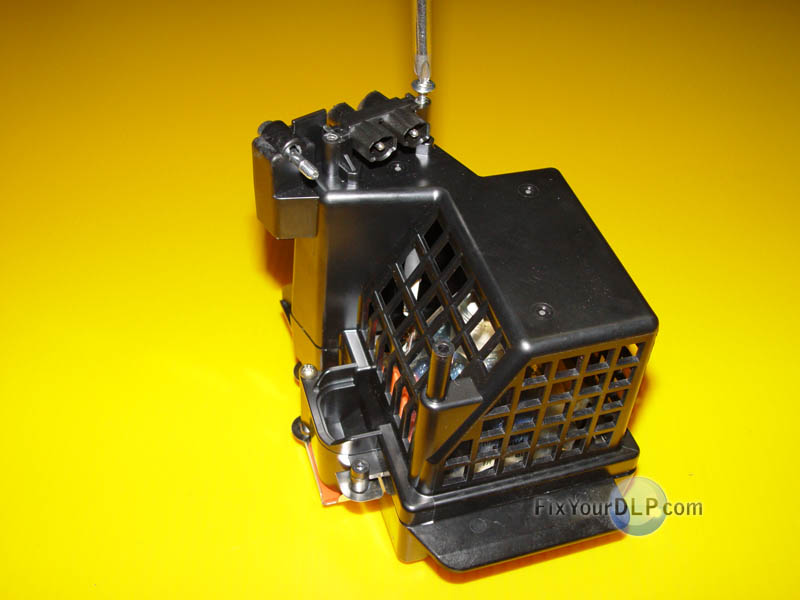

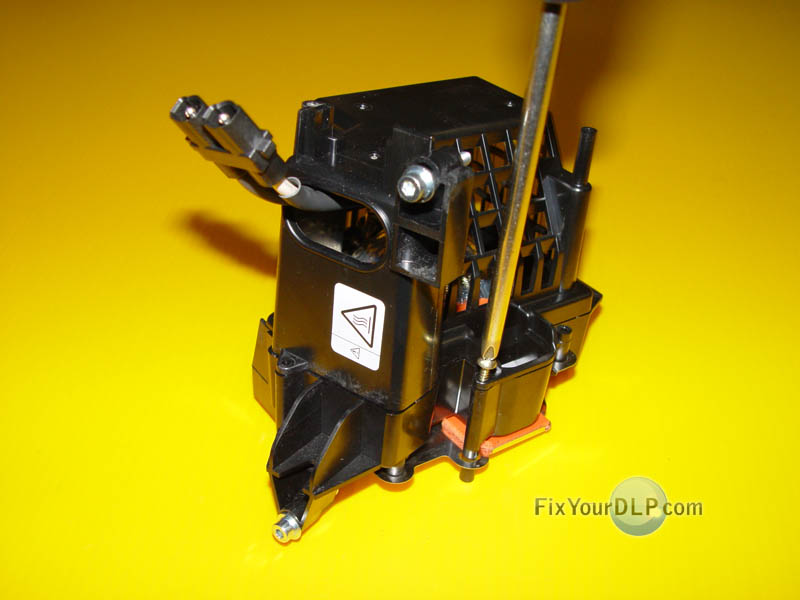

	E.-Secure the connector by reinstalling the two screws, and make sure it doesn’t move.			F.-Reinsert the screw located below the plastic cable connector to conjoin both sides of the casing.

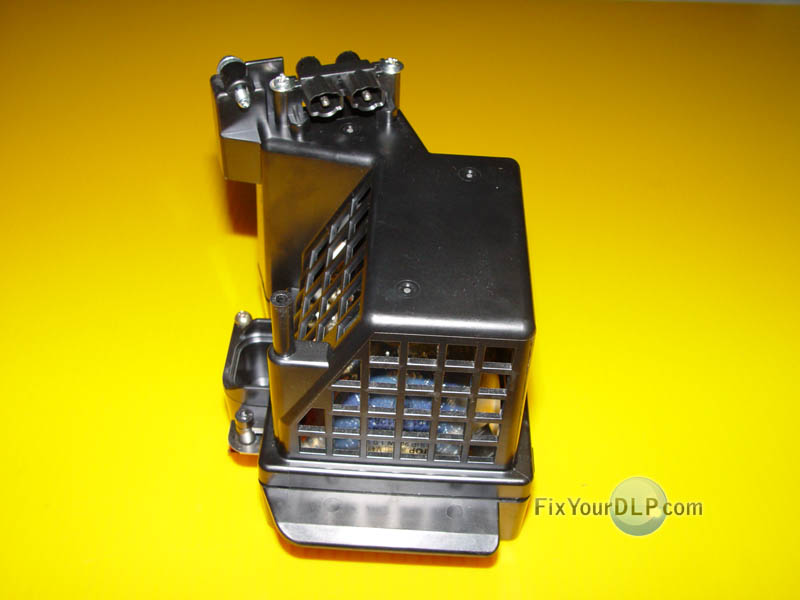

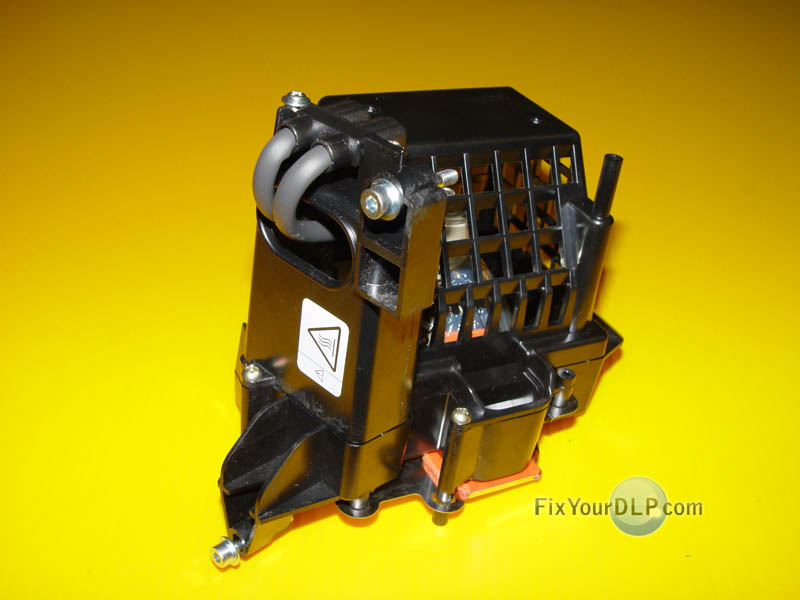

	G.-Insert the last one next to the air dock, and make sure the casing remains as one piece.			H.-Congratulations you have now finished.

IMPORTANT: After installing the replacement bulb, you should wipe it with a clean cloth to avoid any dirt or oil. Our hands are naturally oily…this could reduce considerably the life span of the new lamp.
