Philips 312243871310 How To Guide Replacement DLP TV Lamp Guide

Click below to buy this lamp now:

Lowest Prices Anywhere!

Compatible TV Models: 44PL9522/17, 44PL9523, 44PL9523/17, 44PL9523/99, 55PL9223/17, 55PL9223ST, 55PL9524, 55PL9524/37, 55PL9773, 55PL9773/17, 55PL9773/99, 55PL9774/37, 55PL9874/37, 62PL9524/37, 62PL9774, 62PL9774/37.

NORMAL DISCLAIMER:
— Do NOT purchase generic brand lamps such as LTI, APO or third-party manufacturers such as OSRAM.

These lamps were NOT engineered with and for your TV…only your Philips lamp has been engineered to work flawlessly and output the best possible color. Above that, it just doesn’t make sense to choose an aftermarket lamp for a $5-$10 difference (and in many cases they are more expensive!!). Be a smart consumer and do your research! Discount-Merchant.com promises to be the low price leader in all Projection TV Lamps they carry…if this is not true, let us know and we’ll fix it!

Tools Required: Standard Philips or Flathead screwdriver, Pair of Pliers, A new lamp.

Time Required: About 15 minutes.

Abstract: This guide is being published to show how easy it is to replace your original Philips 312243871310 Lamp.

NOTE: We recommend you to use latex gloves when handling the new bub, to avoid any dirt or oil. Our hands are naturally oily…The oil residue from our hands can cause premature failure of the lamp if the front side of the lamp is not wiped down after the installation. It doesn’t hurt to do a final wipe with a clean, non-abrasive, lint-free cloth before reinstalling your lamp…

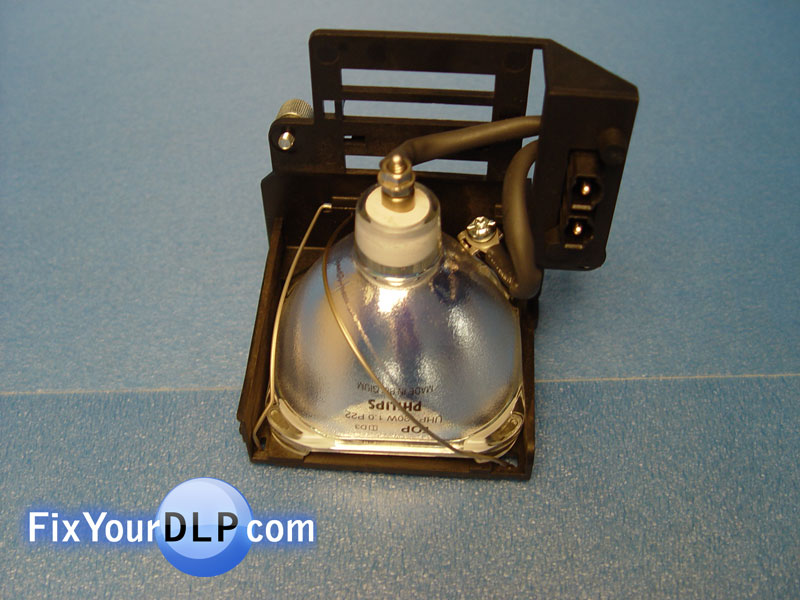

	Philips 312243871310U Lamp Enclosure			1.- Turn your enclosure upside down, so the bulb will be facing the surface.

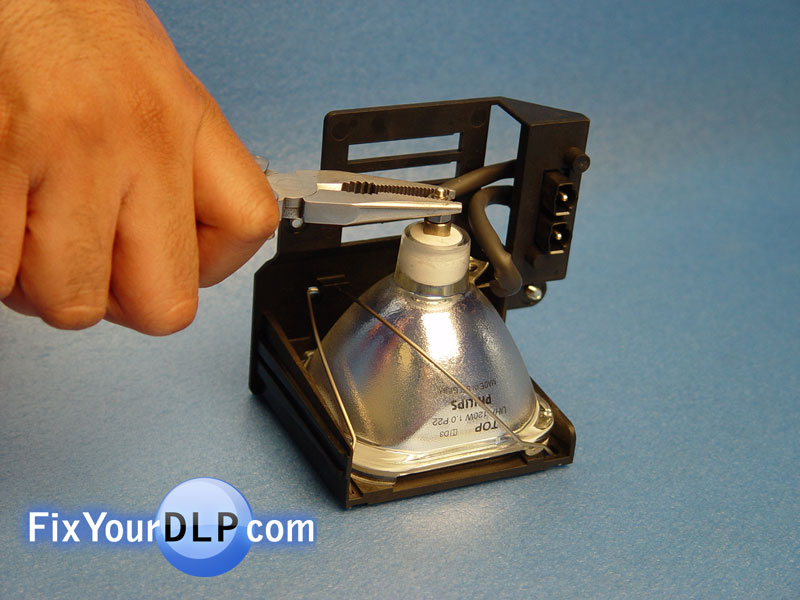

	2.- Using a Philips screwdriver, disconnect the cable placed to the side of the lamp.			3.- With a pair of pliers, uninstall the nut from the top of the lamp and disconnect the cable.

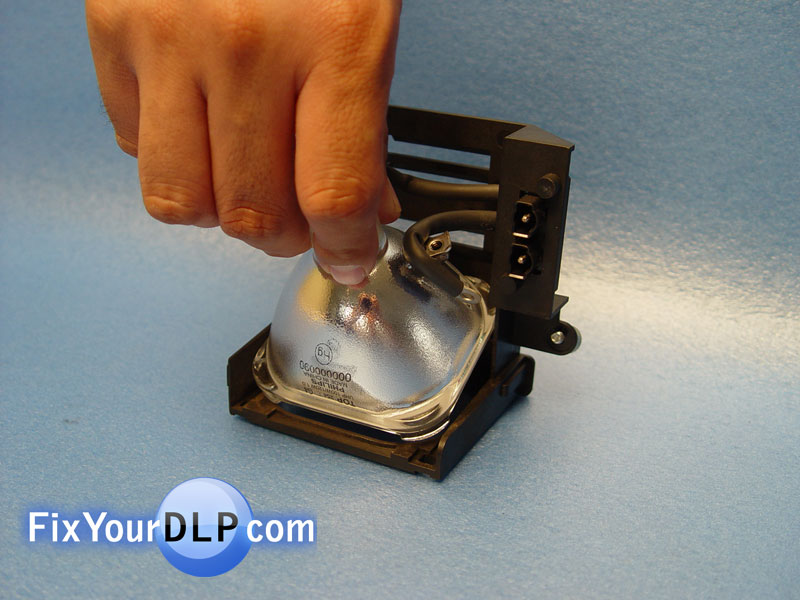

	4.- Now remove the lamp holder clip by pressing it down and pulling it out to the side.			5.- Remove your old lamp, by pulling it out.
	A.- After removing your old bulb take out your new one, wich will look something like this.			B.-Install your new Philips P22 UHP 120W 1.0 Lamp lamp to the lamp holder.
	C.- Place back the lamp holder clip to its original position.			D.- Reinstall the cable to the top of the lamp, by tightening the nut.
	E.- Reconnect the cable on the side of the lamp with the screw.			F.- And you’re finished, Congratulations!

IMPORTANT: After installing the replacement bulb, you should wipe it with a clean cloth to avoid any dirt or oil. Our hands are naturally oily…this could reduce considerably the life span of the new lamp.

Again, Discount-Merchant.com promises to be the low price leader in all Projection TV Lamps they carry…if this is not true, let us know and we’ll fix it

Click below to buy this lamp now:

Lowest Prices Anywhere!

Philips DLP Lamp 312243871310 How-To Replacement Guide
