Panasonic DLP Lamp TY-LA1500 How-To Replacement Guide

[Español]

For Part Number: Panasonic DLP Lamp TY-LA1500 (Sealed replacement lamp for DLP televisions, small lamp with no vents).

For Enclosure: Panasonic Lamp(enclosure TY-LA1500 / LSMP0378).

Lamp Type: LCD.

For Bulb: UHP 100W 120W 1.0

Philips Lamp P22 UHP 100 / 120W 1.0

P 22 1.0 Philips.

Click below to buy this lamp now:
buy now
Lowest Prices Anywhere!

Compatible TV Models: PT40LC12, PT40LC13, PT45LC12.

Assembly part numbers: LSMA0617, AM0000119.

NORMAL DISCLAIMER:
— Do NOT purchase generic brand lamps such as LTI, APO or third-party manufacturers such as OSRAM.

These lamps were NOT engineered with and for your TV…only your Philips lamp has been engineered to work flawlessly and output the best possible color. Above that, it just doesn’t make sense to choose an aftermarket lamp for a $5-$10 difference (and in many cases they are more expensive!!). Be a smart consumer and do your research! Discount-Merchant.com promises to be the low price leader in all Projection TV Lamps they carry…if this is not true, let us know and we’ll fix it!

Tools Required: Long Standard Philips (magnetic tip), A new lamp.

Time Required: About 15 minutes.

Abstract: This guide is being published to show how easy it is to replace your original Panasonic TY-LA1500 Lamp.

NOTE: The bulb should be handled with a clean lint-free cloth at all times to avoid any dirt or oil. Our hands are naturally oily…The oil residue from our hands can cause premature failure of the lamp if the front side of the lamp is not wiped down after the installation. It doesn’t hurt to do a final wipe with a clean, non-abrasive, lint-free cloth before reinstalling your lamp…

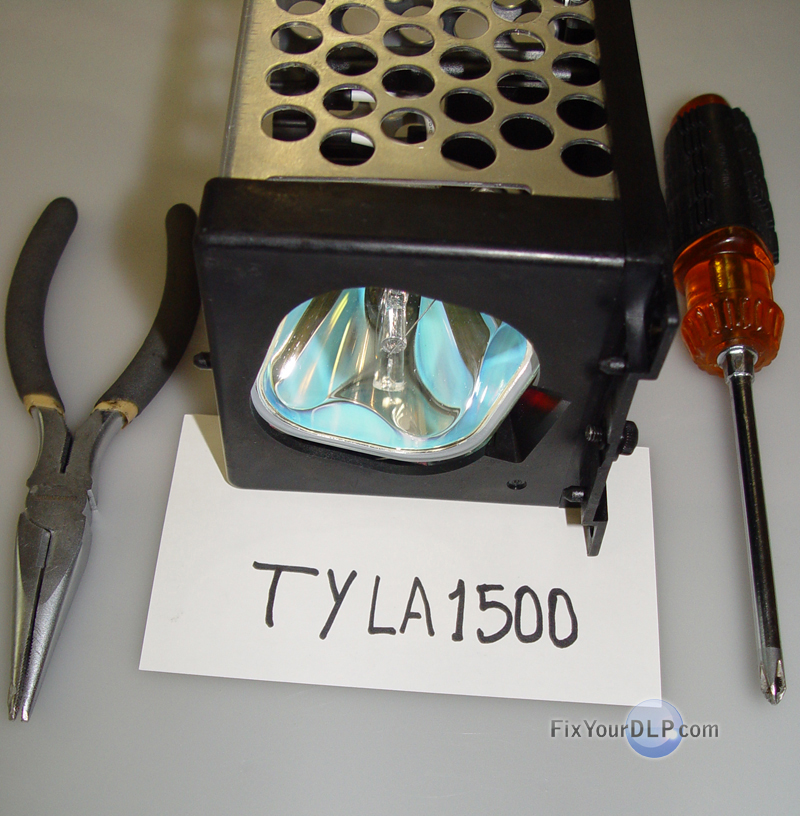

Panasonic TY-LA1500

Panasonic TY-LA1500 Lamp casing

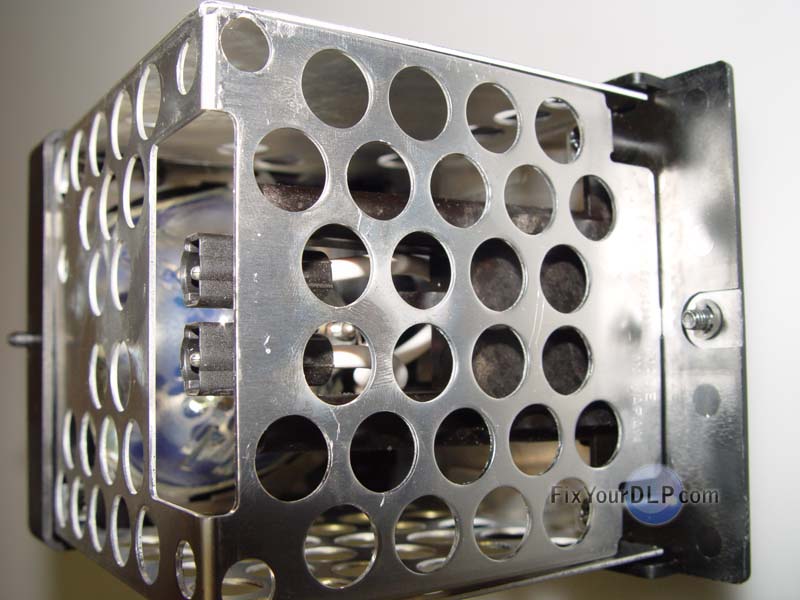

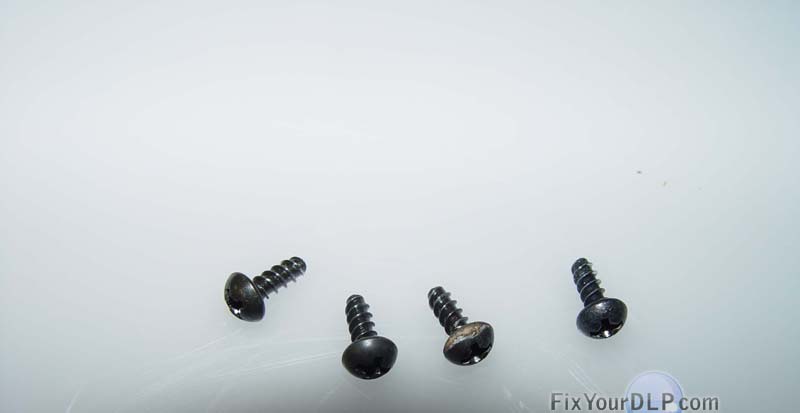

Four screws inside metal cage

1.-Let’s start by turning up side down the lamp, you’ll notice that the metal cage is secured by four screwsfrom the inside.

inside metal cage

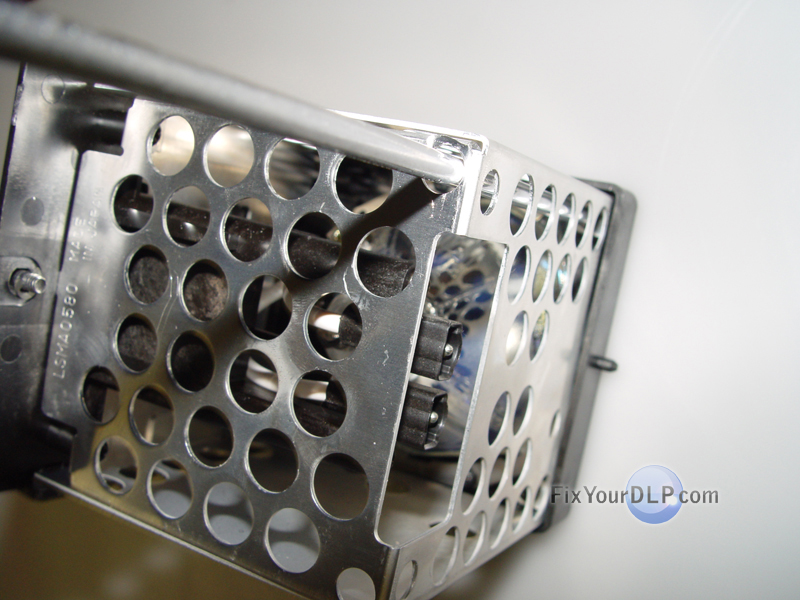

2.-To extract them you’ll need a long magnetized screwdriver introducing it through one of the holes in the metal cage.


Metal cage

3.-After removing the first two screws, turn the enclosure on its side and remove the remaining ones.

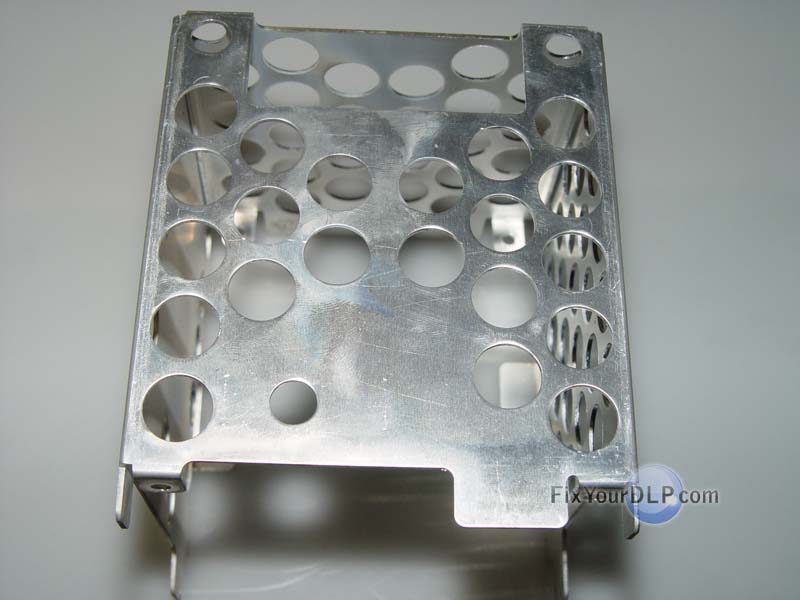

Metal cage

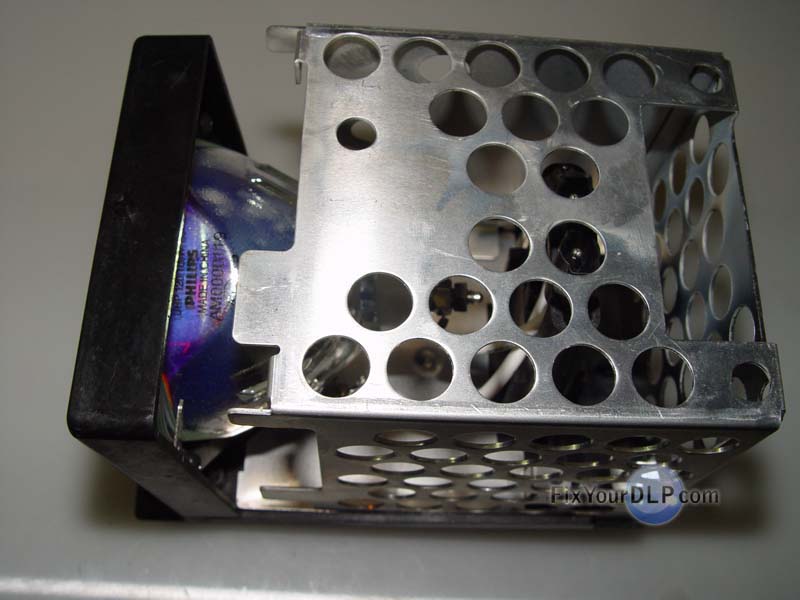

4.-After extracting the metal cage by lifting it up it will look something like this.

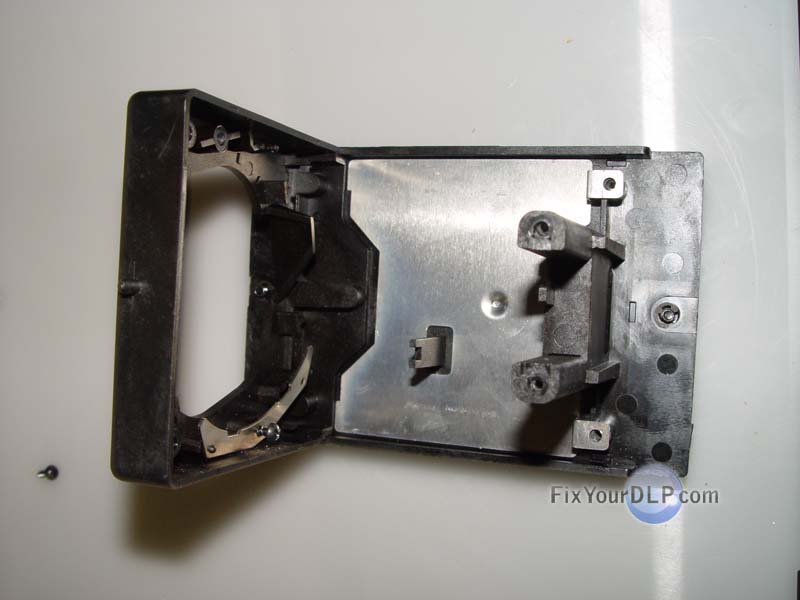

Lamp casing LSMP0378 & Philips Lamp P22 UHP 100 / 120W 1.0

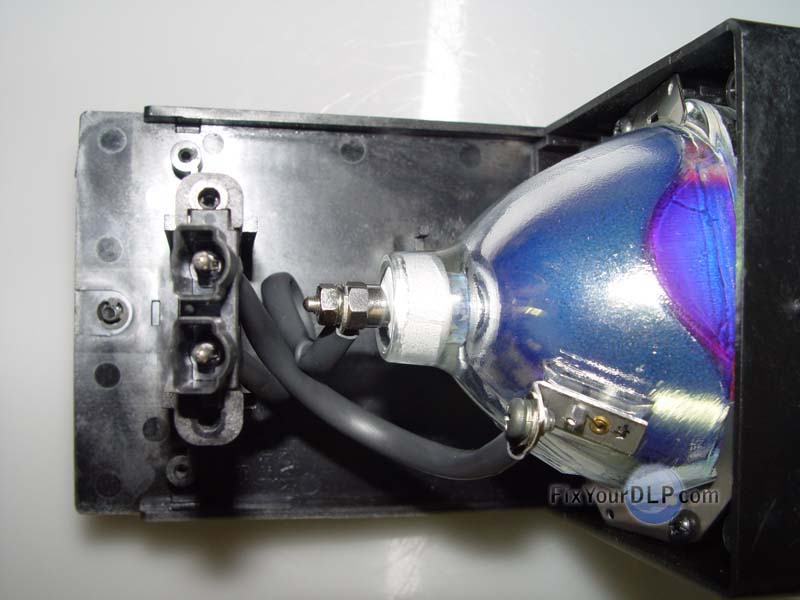

5.-Inside you’ll find the bulb, take out the screw that holds the lamp and a plastic cable on the side.

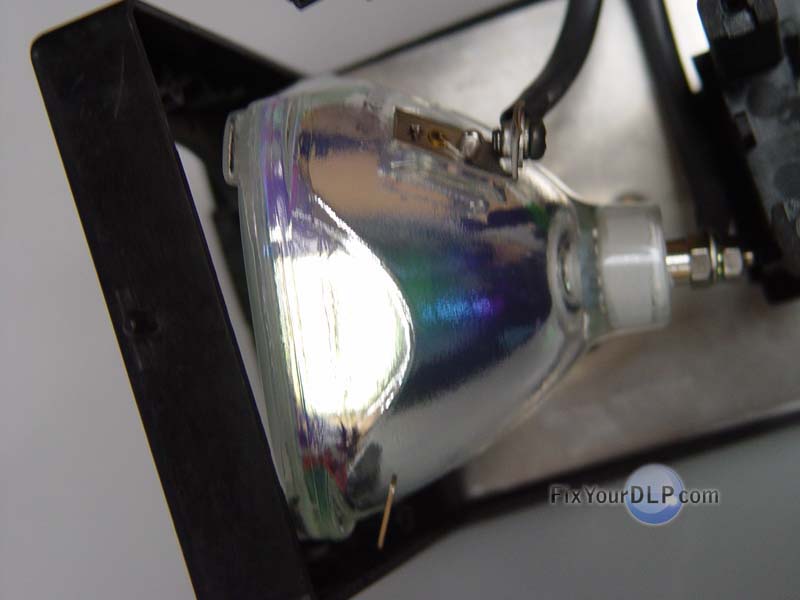

Lamp casing LSMP0378 & Philips Lamp P22 UHP 100 / 120W 1.0

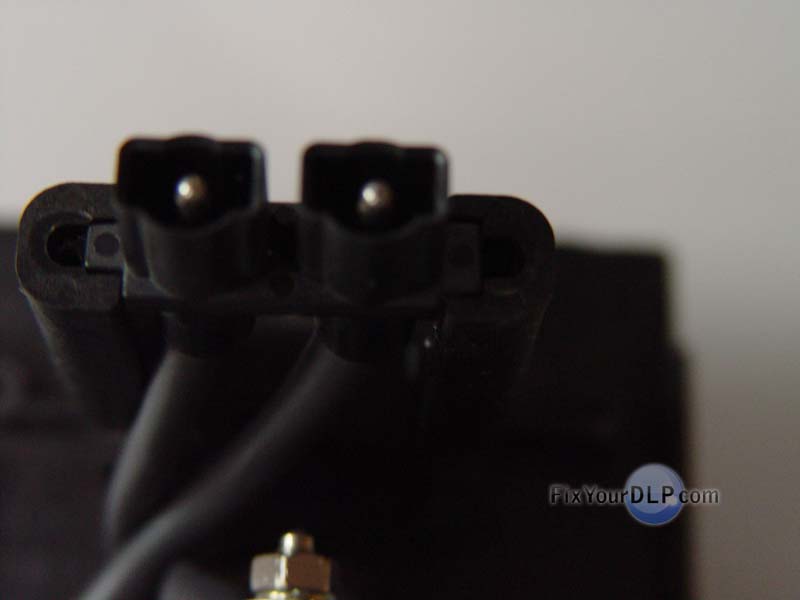

6.-And on the top terminal use your pair of pliers to loosen and separate the nut from the bulb.

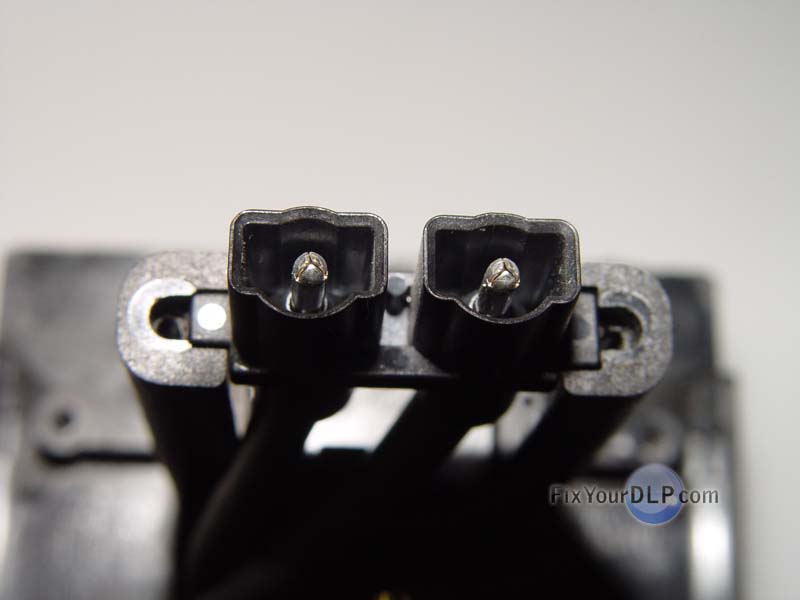

Lamp casing LSMP0378 & Metal clips

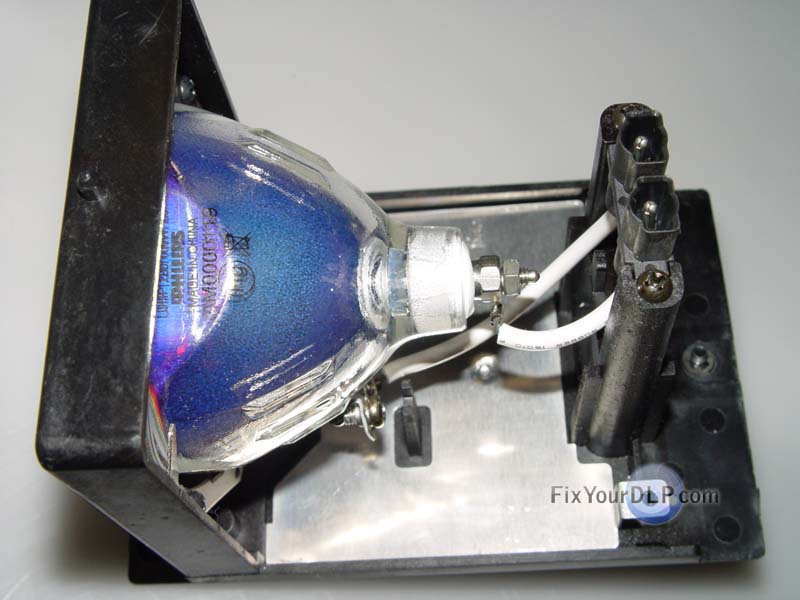

7.-On the side of the lamp you’ll find two metal clips holding the lamp in place, unscrew and remove them to take out the old bulb.

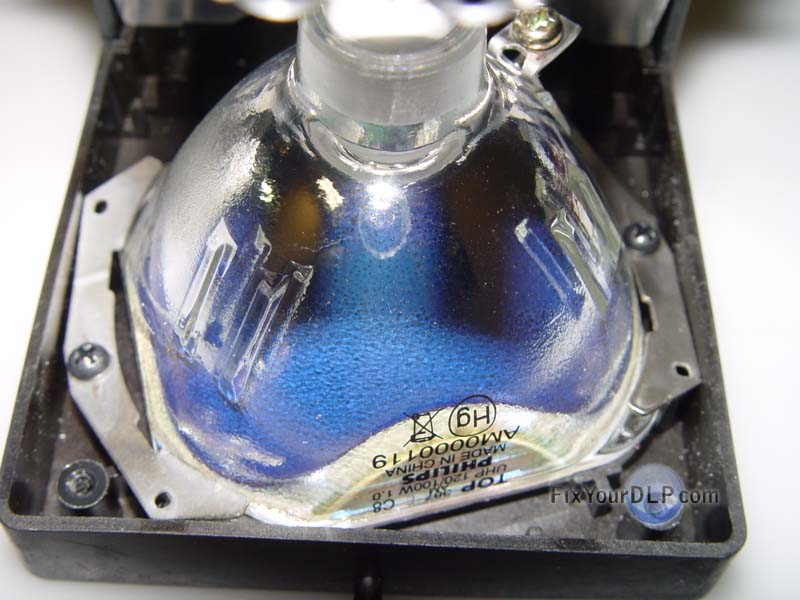

Philips Lamp P22 UHP 100 / 120W 1.0

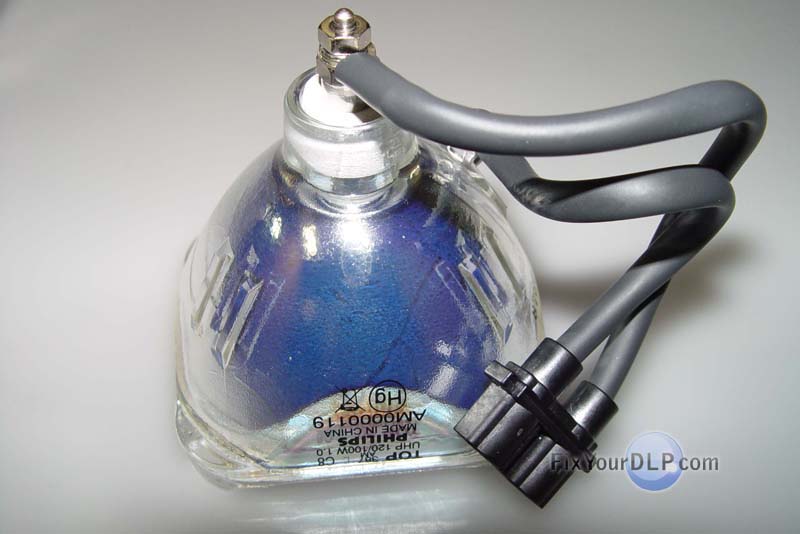

8.-After removing the old bulb take out your new one, which will look something like this.


Lamp casing LSMP0378 & Metal clips

A.-Place the new lamp in its place and secure it buy tightening the two clips adjacent to it.

Lamp casing LSMP0378 & Philips Lamp P22 UHP 100 / 120W 1.0

B.- Reinstall the nut on the top terminal of your new lamp to conjoin it with the plastic cable.

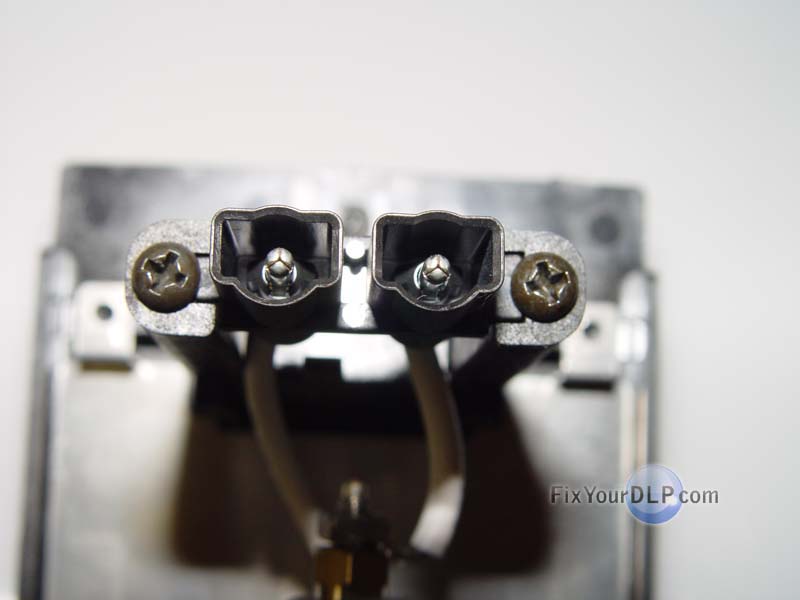

Lamp casing LSMP0378 & Philips Lamp P22 UHP 100 / 120W 1.0

C.-Now place the small screw that connects the cable to the side of your new lamp.

Metal cage

D.-Time to take and reinstall the metal cage, it was previously removed from the lamp enclosure.


Four screws inside metal cage

E.-Insert the four screws that hold the metal cage buy guiding them through the tip of your magnetized screwdriver.

inside metal cage

F.- Once secured all, they will look similar to this.

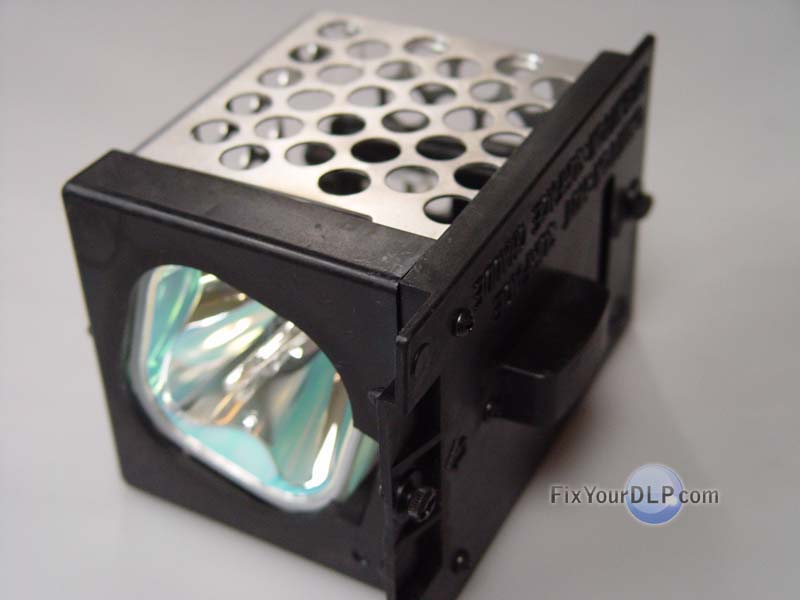

TY-LA1500

G.-And you’re finished replacing your bulb.



IMPORTANT: After installing the replacement bulb, you should wipe it with a clean cloth to avoid any dirt or oil. Our hands are naturally oily…this could reduce considerably the life span of the new lamp.

Again, Discount-Merchant.com promises to be the low price leader in all Projection TV Lamps they carry…if this is not true, let us know and we’ll fix it!

Click below to buy this lamp now:
buynow
Lowest Prices Anywhere!
